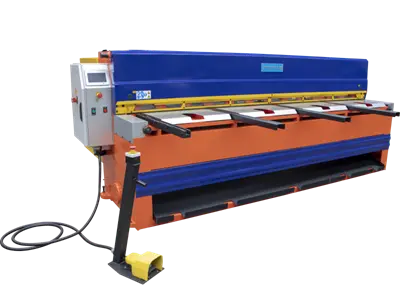

This is a new 10' x 10-gauge shear that will drop sheared parts to both the front or rear of the shear at 37 strokes per minute. The sheet is held up against the backgauge until sheared and the operator can program it to drop to the back or front of the shear, all through the CNC control panel.
10’ xc 10GA. MILD STEEL CAPACITY, 14GA. STAINLESS STEEL CAPACITY
35 STROKES PER MINUTE
30” FRONT OPERATED MOTORIZED BACK GAUGE
TOUCH SCREEN NC CONTROL
98” SIDE EXTENSION SQUARING ARM
TWO FRONT SUPPORT ARMS
REAR PNEUMATIC SHEET SUPPORT SYSTEM WITH FRONT MATERIAL RETURN
INCLUDES OPTION TO RETURN MATERIAL TO THE BACK OF THE MACHINE
FINGER GUARD SYSTEM ON THE FRONT
BALL TRANSFER TABLE ON BED OF SHEAR
EASY BLADE GAP ADJUSTMENT FROM FRONT
MATERIAL SHADOW LINE LIGHT SYSTEM
CUT PART COUNTER
SINGLE, INCH AND CONTINUOUS STROKE
FOOT PEDAL CONTROLLED WITH EMERGENCY STOP ON FOOT PEDAL
REAR MACHINE PHOTO CELL SYSTEM WITH SAFETY GUARDS ON BACK OF SHEAR
BACK GAUGE with SHEET SUPPORT SYSTEM
Dual Voltage 230/460-volt 3 phase system (customer is 460-volt 3 phase)
15 HP Motor
Features:
35 strokes per minute
30″ front-operated, motorized back gauge
Touch-screen NC control
39″ side extension squaring arm and two front support arms
Easy blade gap adjustment from front
Material shadow line light system
Rear pneumatic sheet support system and Return to Sender Feature
230-volt, 3-phase power
