Standard Equipment: (All of the following come with the machine)
• Squaring Arm with inlaid scale, 39” • Low Noise Gear Pump
• High Carbon, High Chrome Shear Blades • Hold-downs faced w/anti-mar neoprene
• Hydraulic, Electrical Overload Protection • Swing Beam Design
• Pressure Sensing Hold Downs • Support Arms Included
• Squaring Arm, 39” from blade to end • Electric Stroke Adjustment
• Stroke Counter • Operator Control Console
• Numerically controlled controller • Rear Safety Guard
• Blade Guard • Moveable Foot Pedal
• Bed Infill Plates w/ Ball Transfers • Cutting Illumination
SPECIFICATIONS:

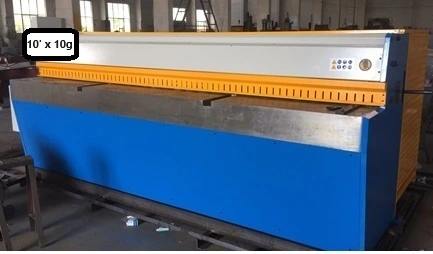

• Max Sheet Size: 120”
• Max Shearing Capacity: 10 Gauge Mild Steel @ 65,000 PSI UTS
• Shear Angle: 1 Degree 30’
• No Load Strokes: 47 per minute
• Adjustment Range of Back Gauge: 0.75” - 36”
• Main Motor: 15 HP, 220 or 440 Volts, 3-phase (Please specify voltage requirement.)
• Net Weight: 8,709 lbs.
• Dimensions (L x W x H): 143” x 89” x 55”
• Swing Beam Design
Squaring Arm with inlaid scale, 39”
• High Carbon, High Chrome Shear Blades
• Hold-downs faced w/anti-mar neoprene
• Hydraulic, Electrical Overload Protection
• Swing Beam Design
• Pressure Sensing Hold Downs
• Support Arms Included
• Squaring Arm, 39” from blade to end
• Electric Stroke Adjustment
• Stroke Counter
• Operator Control Console
• Numerically controlled controller
• Rear Safety Guard
• Blade Guard
• Moveable Foot Pedal
• Bed Infill Plates w/ Ball Transfers
• Cutting Illumination
