Tennsmith SBS CNC Folder

Description

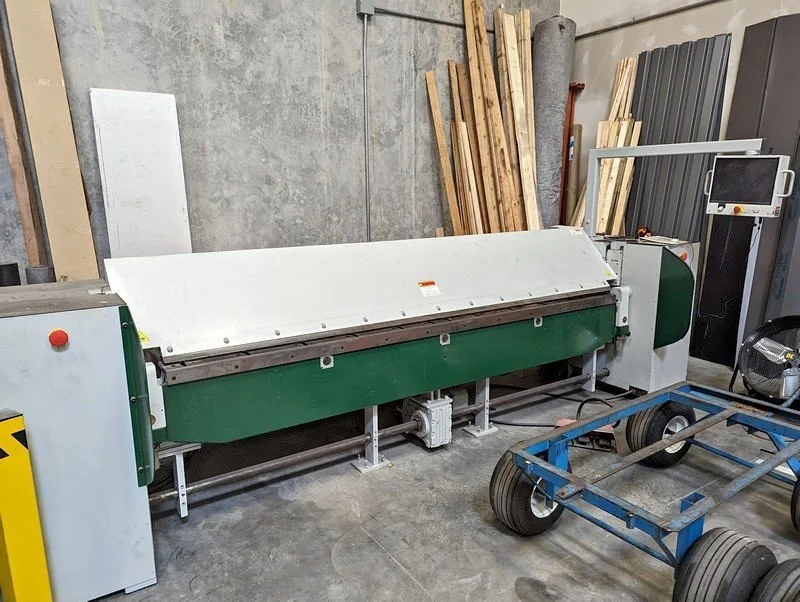

This is a TENNSMITH CNC FOLDER 126" X 14 GA SBS Series SBS126-14
Capacity, Mild Steel 14 Gauge (2.0 mm)
Capacity, Stainless Steel 16 Gauge (1.6 mm)
Bending Length 126 in. (3200 mm)
Bending Bars - Standard 1 in (25 mm), 7/16 in (11 mm)
Crowning of the Folding Beam 5-Point 0”- 0.030” Adjustment
Folding Beam Adjustment 1 in. (25 mm)
Folding Beam Speed 80° per second
Back gauge Speed (0.375” to 41”) 5 seconds
Clamping Beam Opening Height 7 in. (178 mm)
Bending Beam Motor 2 + 2 hp
Working Height 34 in. (864 mm)
Dimensions, L x W x H 180 x 96 x 72 in.
4572 x 2438 x 1829 mm
Weight 9,020 lbs. (4091 kg)
