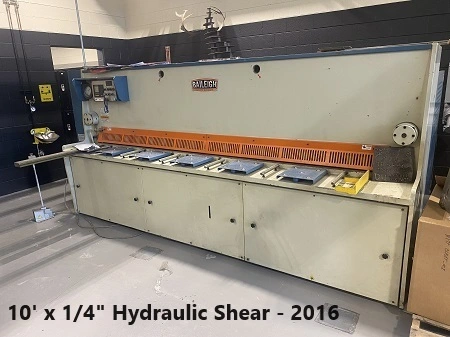

Baileigh 10' x 1/4" Hydraulic Shear, MAKE OFFER
Have one to sell?
ConditionUsed
1 available
$54,749.00 USD
$0.00 USD
NC controlled back gauge
Hydraulically adjustable rake angle
Hand wheel blade clearance adjustment
Heavy duty frame
Digital display
Powered backgauge
High quality four sided blades
Adjustable cutting stroke for speed
Shadow-line lighting
Foot switch on cord
Front support arm with scale
Optional:
Blades for cutting stainless steel
Model HGOK 31/6.35
Shearing capacity - Mild steel 1/4"
Shearing capacity - Stainless steel 10-gauge
Cutting force (max) 145 kN
Cutting length 122 inches
Rake angle adjustment 1.5-3.0°
Strokes per minute 12-45
Back gauge range 29-17/32"
Number of hold down clamps 22
Oil tank volume 110L
Motor power 7.5kw
Machine weight 14550 lbs
Length 159.25 inches
Width 68 inches
Height 68.50 inches
46" Squaring Arm
