Lockformer Drive Hemming Rollformer

Description

This is a 100% MADE IN USA Lockformer Hemmer “Turning the drive” by means of a Rollformer instead of a Cleatbender speeds up production on S & Drive Fittings. Both use ½” of material to Rollform the Drive Turn hem 7/16″ x 180°

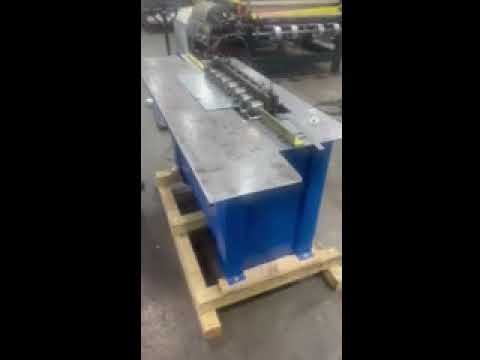

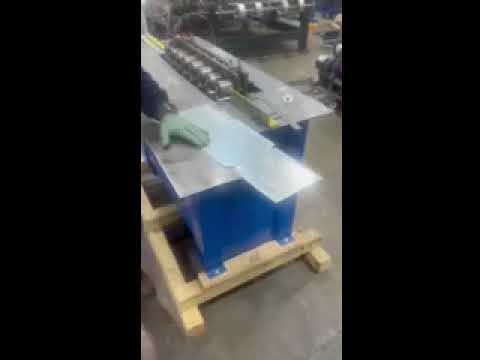

This rebuilt Lockformer Drive Turn Hemming Machine features the Lockformer Skip Dent Indexing Roll which is the heart of the system. The indexer is the first roll and has four pins and two milled ridges. The control lever determines whether the blank is hemmed after the first or second notch. With the lever in position 1, as the blank engages the indexing roll, a pin drops into the first notch. A ridge adjacent to the pin pre-bends the material at its corner just enough to force the material into the hem forming rolls where the 180 degree hem is formed. The next pin, on the rotating index roll, drops into the second notch and since there is no ridge present, the corner of the blank is not turned down and misses the hemming rolls and this section remains unformed.

The 10 Station Rollforms the cleat edge by means of a laser that acts as a Notch depth sensor that triggers the air cylinder to raise or lower. Capacity of 20-26 ga galvanized metal. Outboard side of auxiliary shafts for additional tooling if desired.

This is what all we did to this machine, so she now runs like new.
Power requirements: 110-V 1-Phase Power- Standard 110V plug.
Unit fully rebuilt.
Units fin rolls were seized and missing Race bearing races
Units selector roll had damaged bearing and not spinning freely all idler rolls on unit were not spinning
Techs removed upper and lower heads
Techs cleaned and painted stand
Techs cleaned and painted all covers
Techs cleaned and serviced motor & painted
Techs removed and replaced ALL: Bearings; Thrust washers; Shims; Setup studs; Belle washers; V belts; Grease lines; all idlers; replaced all race bearings races with new
Techs rebuilt selector roll and installed new inner thrust washer and B bearing
Techs re assembled machine
Techs replaced all outer steel spacer shims
Techs replaced snap rings
Techs tested and tuned machine
Techs set selector handle position
Set entry and exit guides
prep for return shipping, machine can ship common carrier.
