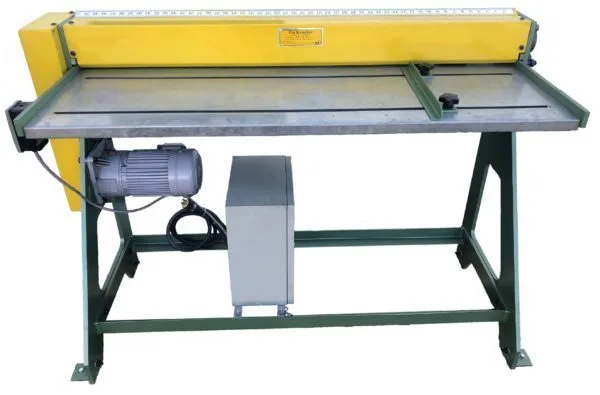

Tinknocker Gang Slitter

Description

Cut multiple blanks of light gauge sheet metal… in one pass! PRICE SHOWN IS DELIVERED
Great for roofing and architectural!
Gang slit blanks from 16 to 30 gauge.
Slit blanks at speeds up to 60 FPM
Gang slit pre-painted and other sheet material
Standard Features:
Life lubed bearings
3” cold rolled polish shafts
3 sets of reversible knives (additional knife blades available upon request)
Heavy duty chain drive
Stripper fingers to prevent twist
Operating Speed: 60 FPM
¾ HP, 110/220V, 1 Phase Motor
Tool steel blades with stripper rings
(Non-scratch: pre-painted, copper, polished metals, etc.)
Specifications:

Overall width: 58:
Width between end frames: 52 ¼”
Max Cutting Width: 48 ½”
Table Height: 35”
Feed Speed: 60 FPM
Weight: 525 lbs.
Overall depth: 26”
Shaft Diameter: 3”
Knife Dimensions: 5” OD x ¼”
Motor HP: ¾ HP
Electrics: 110/220 V – 1ph
Ship Dimensions: 67” x 37” x 48”
