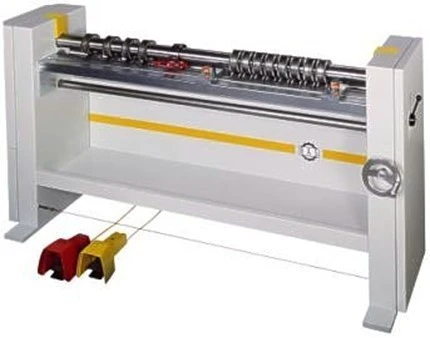

RAS Rounding Machine VENTIrounder

<!--StartFragment--> <h2>VENTIrounder Highlights</h2> <ul><li>Rounding of air duct elbow cheeks with pre-formed seams</li><li>Rounding of sheet metal with Pittsburgh, Snap-Lock or Standing Seam</li><li>No damage to the pre-formed seams due to the moveable rolls</li><li>Quickly adjust to different inside and outside widths elbow cheeks</li><li>Mark-free rounding of the visible outside elbow cheeks</li><li>Selecting of forward and reverse movement (hands remain on part)</li><li>Variable speed for high productivity and sensitive work</li><li>Optional configuration for stainless steel air ducts</li></ul> <!--StartFragment--> <h2>Adjustable for common seams</h2> <p>The common seams in the air duct production are the Pittsburgh seam, the Snap-Lock seam and the Standing seam. If the VENTIrounder is equipped for all three seam types, it can be adjusted with a few simple steps.</p> <ul><li>12 hardened and moveable forming rolls on each shaft</li><li>Upper forming rollers knurled for safe material transport</li><li>Bottom/rear forming rollers plane (mark-free outside elbow cheek)</li><li>Table and forming rolls for Pittsburgh seam</li><li>Table and forming rolls for Pittsburgh, Snap-Lock and Standing seams</li><li>Tables with scale for quick and easy adjustment</li><li>Plug-in guiding rails for inside and outside cheeks</li></ul> <!--StartFragment--> <h2>Simple operation</h2> <p>After the forming rolls and the guiding rails are pushed together to the approximate width of the blank rounding can start.</p> <ul><li>Handwheel for sensitive adjustment of the rear shaft</li><li>Stiffening pliers ensure consistant rounding radius</li><li>Foot switch for variable speed</li><li>Foot switch for direction changes</li></ul> <!--StartFragment--> <h2>Technical Data</h2> <table><thead><tr><th>Technical Data</th><th>VENTIrounder</th></tr></thead><tbody><tr><td>Part width max</td><td>1500 mm</td></tr><tr><td>Part width min</td><td>120 mm</td></tr><tr><td>Material thickness max</td><td>1.25 mm</td></tr><tr><td>Speed</td><td>0-10 m/min</td></tr><tr><td>Radius min approx.</td><td>200-250 mm</td></tr></tbody></table> <!--EndFragment--> <!--EndFragment--> <!--EndFragment--> <!--EndFragment-->
