BRAVO HYDRAULIC DUAL HEAD GORELOCKER
Have one to sell?
ConditionNew
1 available
$44,400.00 USD
$40,425.00 USD
New
This is a NEW BRAVO GORELOCKER MACHINE, MCA BRAVO, MOD HYDRAULIC ELBOW that we normally have IN STOCK in our Pittsburgh, PA warehouse. We always have one on order coming in, please call or email for today's status on our Stock unit, thanks.
FORMING MACHINE. 220/3/60 CA, CAPACITY: 26-16 Ga
GALVANIZED STEEL. TWO STATIONS, ONE FOR FLANGING AND OTHER FOR CLOSING.

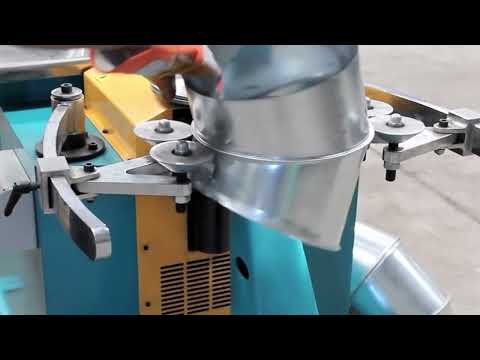

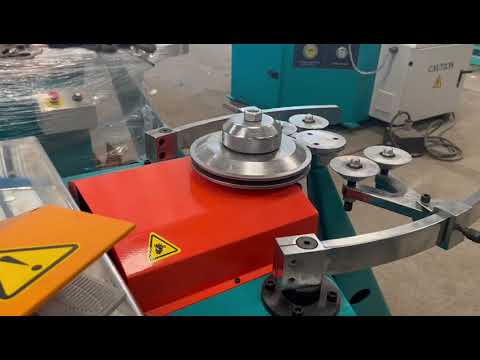

Make your own elbows….and cost effectively! Consider our Hydraulic Gorelocker Round Elbow Machine that is exactly like a Spiral Helix but a whole lot less. It has two stations on one machine, one for flanging and the other for closing. The machine is always ready to go, no tool change required. Produce standing lock seams and reducers fast, easy and affordable. On par with all other brands, BUT at a fraction of the cost of the popular BLUE brands.
Price shown includes on-site training. DO NOT NEED IT, then reduce price by $3,000, but it is money well spent. Shipping Dimensions: 108.3 inches x 37.5-inches x 55 inches 2200 lbs.
ADD $4,000 FOR TRAINING & SETUP ON SITE
This is a NEW BRAVO GORELOCKER MACHINE, MCA BRAVO, MOD HYDRAULIC ELBOW that we normally have IN STOCK in our Pittsburgh, PA warehouse. We always have one on order coming in, please call or email for today's status on our Stock unit, thanks.
FORMING MACHINE. 220/3/60 CA, CAPACITY: 26-16 Ga
GALVANIZED STEEL. TWO STATIONS, ONE FOR FLANGING AND OTHER FOR CLOSING.
Make your own elbows….and cost effectively! Consider our Hydraulic Gorelocker Round Elbow Machine that is exactly like a Spiral Helix but a whole lot less. It has two stations on one machine, one for flanging and the other for closing. The machine is always ready to go, no tool change required. Produce standing lock seams and reducers fast, easy and affordable. On par with all other brands, BUT at a fraction of the cost of the popular BLUE brands.
Price shown includes on-site training. DO NOT NEED IT, then reduce price by $3,000, but it is money well spent. Shipping Dimensions: 108.3 inches x 37.5-inches x 55 inches 2200 lbs.
ADD $4,000 FOR TRAINING & SETUP ON SITE

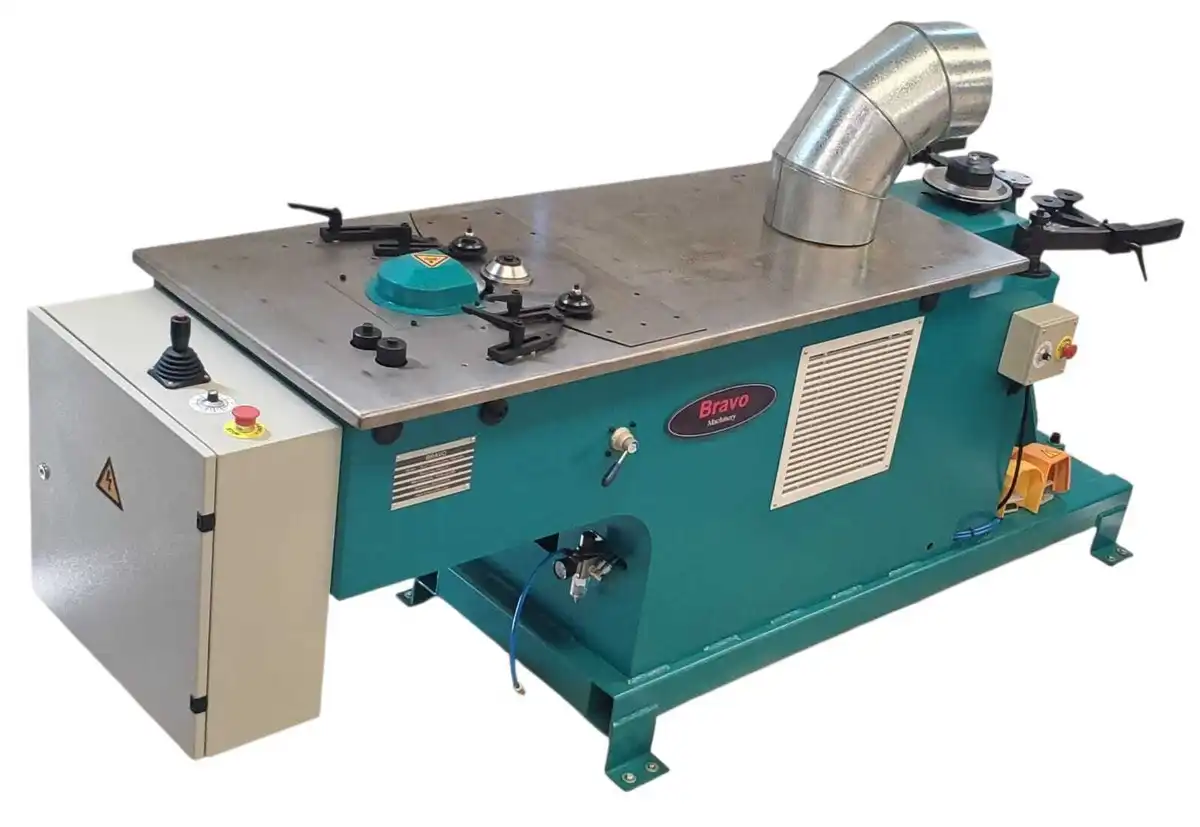

NEW HYDRAULIC ROUND ELBOW MACHINE - DELIVERED TO YOUR SHOP
HYDRAULIC ROUND ELBOW MACHINE Specifications
Diameter Range: 5” to 50”
Max segment angel: 30 degrees (90-degree elbow, 4 parts)
Material Thickness
0.4 – 1.0 mm (26 ga- 20 ga.) galvanized steel
0.4 – 0.8 mm (26 ga.-22 ga.) stainless steel
0.4 – 1.2 mm (22 ga-18 ga) aluminum
Flanging Speed
Max. Adjustable to 120 m/min. (394 fpm)
Production Time
90 sec. (bend ø 200 mm, 90° / 4 segments)
Electrical Connection: 4KW, 220volts/3phase/60Hz
