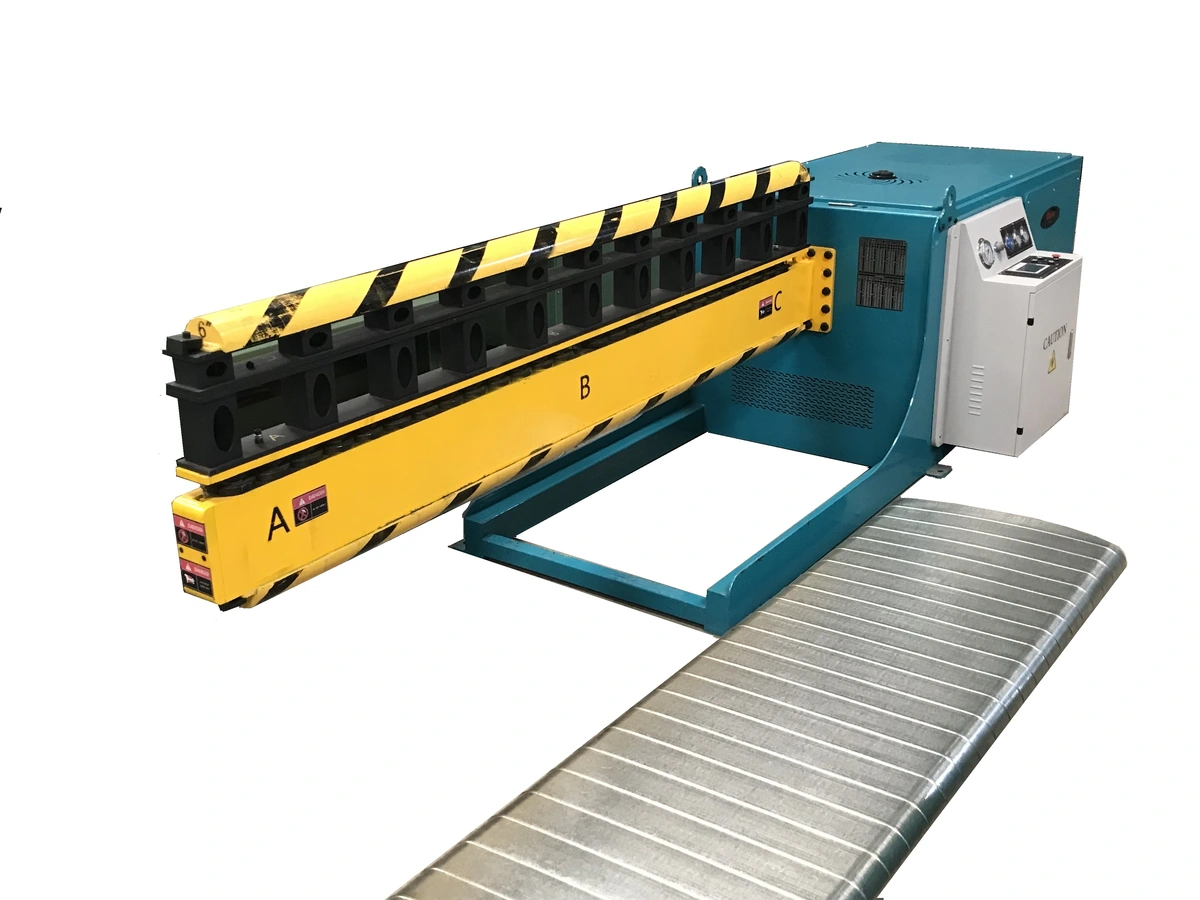

NEW BRAVO OVALIZER DUCT MACHINE
Have one to sell?
ConditionNew
1 available
$87,500.00 USD
New
Lower cost
The installation of spiral ductwork — including labor, transportation, warehousing, and packaging — can cost up to 50% less than traditional rectangular duct. Because of its strength and rigidity, spiral duct requires fewer supporting components and fewer tools to install. It is typically made of a lighter material than rectangular duct, which makes installation easier; in fact, it can often be installed by just one or two people rather than a whole team.
Higher efficiency
Air leakage at duct joints is a common problem for traditional rectangular ductwork, which leads to energy loss and poor system efficiency. Spiral duct systems, however, typically meet or exceed industry air-leakage standards. With less leakage, the cost of heating, cooling, and filtering conditioned air is much lower and indoor air quality is a lot higher. The spiral design of the system keeps internal air pressure equal, allowing the air to flow evenly and efficiently.
Less noise
Noise breakout is another issue that is common with rectangular ductwork. The design of the rectangular system causes air to move around sharp edges, dampers, and turning vanes. This obstruction contributes to noisy turbulence; however, spiral ducts have smoother edges that eliminate reverberation, creating less noise.
Diameter Range: 16” to 60”
Oval Duct Size: H 6-20″ W 20.5-90.5″
Material Thickness
0.4 – 1.2 mm (26 ga- 18 ga.) galvanized steel
Effective Lenght
120″ (3 m)
Electrical Connection: 11KW, 220volts/3phase/60Hz
Lower cost
The installation of spiral ductwork — including labor, transportation, warehousing, and packaging — can cost up to 50% less than traditional rectangular duct. Because of its strength and rigidity, spiral duct requires fewer supporting components and fewer tools to install. It is typically made of a lighter material than rectangular duct, which makes installation easier; in fact, it can often be installed by just one or two people rather than a whole team.
Higher efficiency
Air leakage at duct joints is a common problem for traditional rectangular ductwork, which leads to energy loss and poor system efficiency. Spiral duct systems, however, typically meet or exceed industry air-leakage standards. With less leakage, the cost of heating, cooling, and filtering conditioned air is much lower and indoor air quality is a lot higher. The spiral design of the system keeps internal air pressure equal, allowing the air to flow evenly and efficiently.
Less noise
Noise breakout is another issue that is common with rectangular ductwork. The design of the rectangular system causes air to move around sharp edges, dampers, and turning vanes. This obstruction contributes to noisy turbulence; however, spiral ducts have smoother edges that eliminate reverberation, creating less noise.
Features:
English/Spanish Software
SIEMENS PLC and Touch Screen
Schneider Relays and Switches
Includes Dies: 6",8",10",12",14",16",18" AND 20" Brackets
Brackets: 100mm,150mm, 200mm, 400mm, 600mm, 800 mm
Capacity: 26-18 Ga, min pipe diameter:
Please note that 16" is the minimum spiral pipe diameter
Specifications:
Diameter Range: 16” to 60”
Oval Duct Size: H 6-20" W 20.5-90.5"
Material Thickness: 0.4 – 1.2 mm (26 ga- 18 ga.) galvanized steel
Effective Length: 120" (3 m)
Electrical Connection: 11KW, 220-Volts, 3-Phase, 60-Hz
The hydraulic system is powerful and smart, with an 11KW motor (220/3/60) that raises a max pressure of 25 MPa, the oil flow is controlled by 3 independent units of cylinders that receive information from height microswitches and Siemens PLC.
Electrical Requirements:
The list below indicates the total power consumption
Voltage: 200-240 VAC, 60Hz
Main Motor: 11 kW
Fuse: 200-240 VAC, 60A
Cable: 8 Gauge
Specifications
CALL US TO DISCUSS AT 800-753-0393 OR FILL OUT THE FORM BELOW, WE HAVE SOLD SEVERAL OF THESE UNITS AND CAN PROVIDE YOU REFERENCES AND PHONE NUMBERS. WE ALSO HAVE TWO SERVICEMEN AVAILABLE TO YOU DOWN THE ROAD SHOULD YOU NEED SERVICE, BUT HONESTLY THESE SEEM TO BE MADE SO YOU SHOULDN'T HAVE ISSUES AND IF YOU DID MOST COULD BE HANDLED OVER THE PHONE. THE HYDRAULIC PARTS WILL BE FOUND AT YOUR LOCAL SUPPLY HOUSE. COME SEE ONE IN PERSON IF YOU HAVE QUESTIONS. WE CAN DO A ZOOM MEETING OR FACETIME. www.sheetmetalmachinery.com
Diameter Range: 16” to 60”
Oval Duct Size: H 6-20″ W 20.5-90.5″
Material Thickness
0.4 – 1.2 mm (26 ga- 18 ga.) galvanized steel
Effective Lenght
120″ (3 m)
Electrical Connection: 11KW, 220volts/3phase/60Hz
