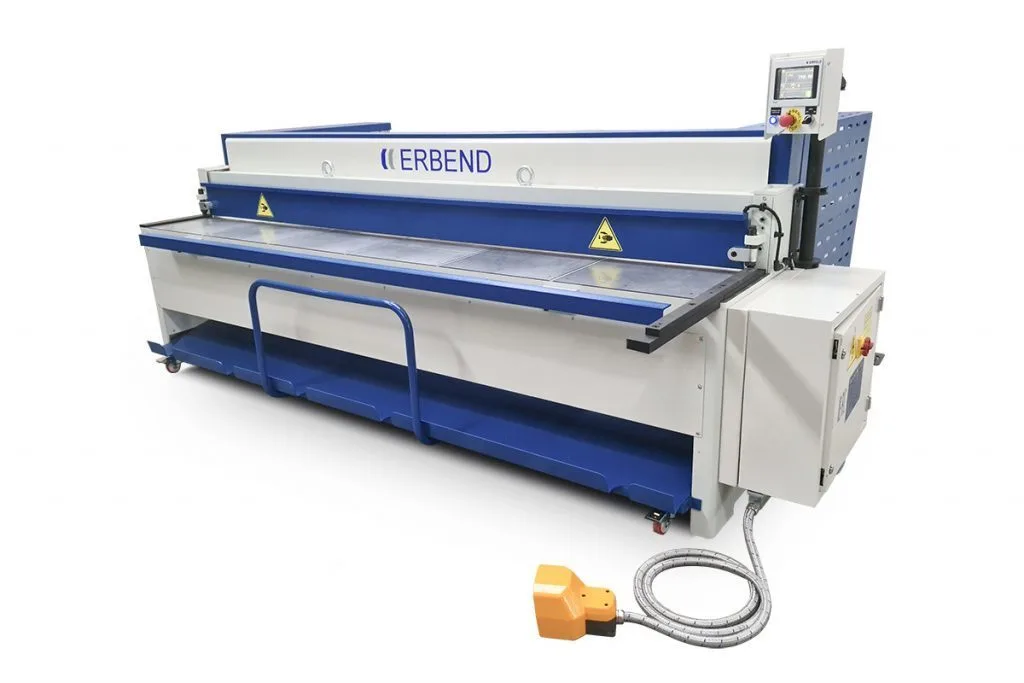

ERBEND MODEL EMS3220 Mechanical Power Shear

<p><b>14 FEATURES THAT MAKE THE EMS3220 A POWERFUL SHEAR FOR ANY SHOP</b></p> <p>1) 750 MM SERVO MOTORIZED BACK GAUGE SYSTEM</p> <p>&nbsp;700W servo drive and motor with +/- 0,1 mm accuracy</p> <p>&nbsp;32/32 thread ball-screw system with +/- 0,05 mm accuracy</p> <p>&nbsp;Aluminum sigma profile sheet support</p> <p>One fixed, one movable, full body protective, vertical light barriers</p> <p>Side fences to avoid unwanted interventions</p> <p>2) ELGO P40T / 002 TOUCH-SCREEN NC CONTROL SYSTEM</p> <p>TFT display with touchscreen</p> <p>Program memory up to 1.000 steps and 10 operation modes</p> <p>Manual function</p> <p>Single set operation</p> <p>Digital outputs up to 2A</p> <p>Analog outputs</p> <p>Material depending gap, angle and pressure calculation</p> <p>Automatic cut</p> <p>Sheet support</p> <p>Sheet return</p> <p>24VDC input</p> <p>IP43 front and IP00 rear protection class</p> <p>3) FRICTION FREE GUILLOTINE BLADE GEOMETRY AND DUAL SIDED BLADES</p> <p>Thanks to the curved machined blade geometry, blades never touch each other which sustains a&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;much more longer blade life without sacrificing cutting precision.</p> <p>Both sides of the blades can be used by switching easily</p> <p>3220-4215 series do not have/need blade gap adjustment, all thicknesses can be done with the&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; same fixed adjustment</p> <p>3240-4230 series have manual blade gap adjustment function.</p> <p>4) SPRING LOADED HOLD-DOWN BAR AND POLYURETHANE MATERIAL CLAMPING SURFACE</p> <p>Thanks to the spring load, the sheet is clamped and fixed with an ideal pressure for cutting</p> <p>With the polyurethane touching surface, your material is never scratched.</p> <p>5) FIXED SIDE SQUARING GAUGE AND STAINLESS FEEDING TABLE WITH RULERS ON EACH 500 MM LENGTH</p> <p>6) RETRACTABLE FRONT SHEET SUPPORT BAR</p> <p>From the cutting line to the edge, it is able to support max 930 mm long sheets</p> <p>Smooth and light movement only by pulling from the middle</p> <p>7) LED ILLUMINATION OF CUTTING AREA AND CUTTING LINE </p> <p>8) PNEUMATIC SHEET SUPPORT TO PROCESS REAR DROP OR FRONT DROP</p> <p>9) BACK GAUGE EXTENSION TO 1000 MM</p> <p>11) SIDE GAUGE EXTENSION TO 2 MT / 3 MT</p> <p>12) BLANK SHEET WAGON WITH WHEELS (1000 KG LOADING CAPACITY)</p> <p>13) VARIABLE ANGULAR CUTTING SUPPORT</p> <p>14) CUTTING LINE LASER SIGHT</p>
