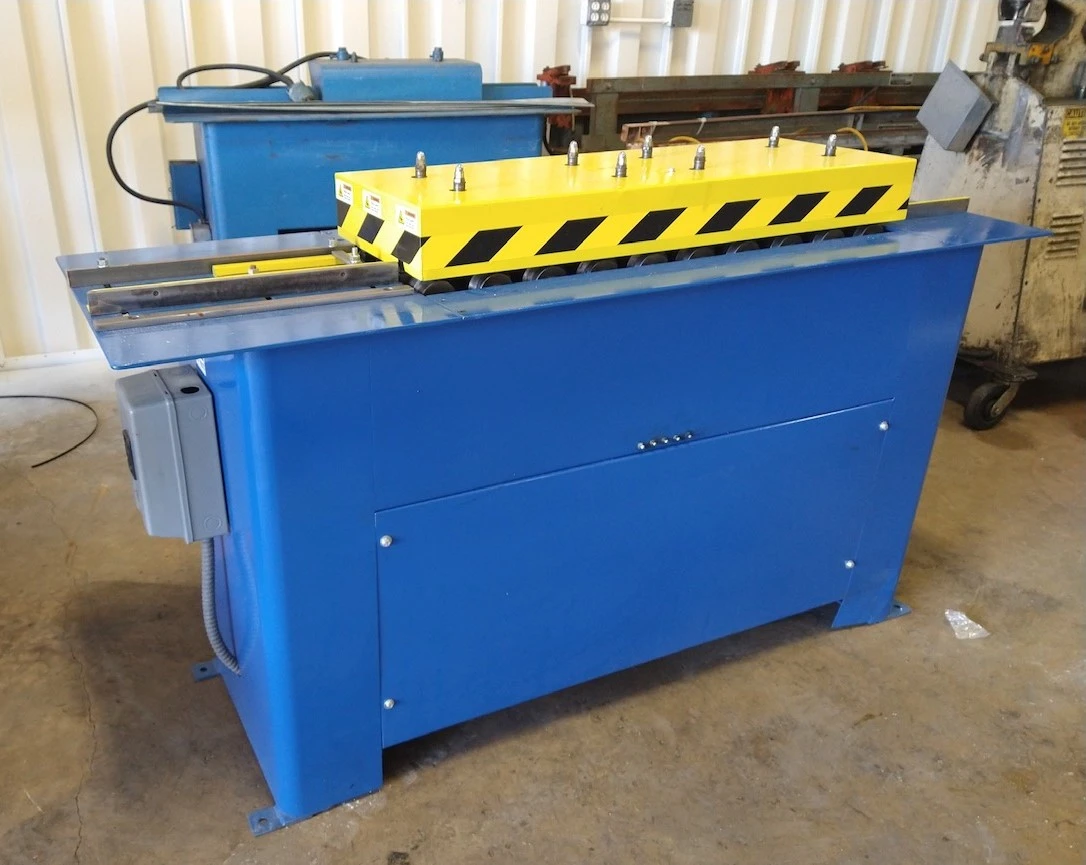

FLAGLER HIGH SPEED ROLLFORMER
RollformerThis machine was replace by Model 21‐000‐DC.
Specifications
Rollformer comes standard with 1-1/8” Drive Cleat Tooling in the center position. There are (2) sets of extended shafts for optional tooling.
Speed: Approx. 100 feet per minute.
Motor: 5 HP 230/460/3/60/1800 RPM
Drive: Double Matched Vee Belt.
Base: Arc Welded Steel. Heavy top plate.
Dimensions: 68" long, 24" wide, 48" high.
Shipping Weight: Approximately 1050 pounds.
Optional Tooling available for this Rollformer include the following:
½” Female Button Lock Rolls (20-30 Ga.)
½” Male Button Lock Rolls (20-30 Ga. )
5/16” Pittsburgh Rolls (20-28 Ga. ) - ALREADY INSTALLED AND INCLUDED IN PRICE
3/8” Pittsburgh Rolls (20-28 Ga. )
1 1/8” Drive Cleat Rolls (20-28 Ga. )
1 1/8” Drive Cleat Rolls with Slitter (20-28 Ga.)
5/8” Tap-In (3 in 1) (22-28 Ga.) - ALREADY INSTALLED AND INCLUDED IN PRICE
5/8” End Cap Rolls (22-26 Ga.)
½” Tap-In (3 in 1) (22-28 Ga.)
½” x 180° Hem Rolls (20-28 Ga. )
½” Hem x 5/8” Kick Rolls (24-28 Ga.)
3/8” Hem x 1/2” Kick Rolls (24-28 Ga.)
½” Double Seam Rolls (16-20 Ga.)
3/8” Double Seam Rolls (20-28 Ga.)
7/16” Right Angle Flange Rolls (20-28 Ga.)
¾” Standing Seam Rolls (20 Ga.)
Full Reeves Rolls (Male and Female)
Modified Reeves Rolls (Male and Female)
5/16” Pitts. Button Lock (Male and Female)
5/8” x 1” Boot Cleat (26-28 Ga. )
