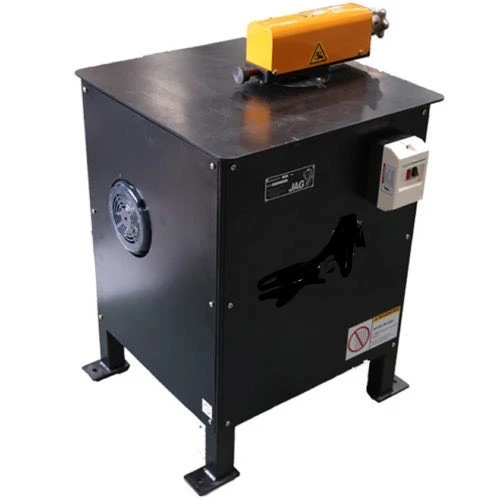

JAG MACHINERY 16-Gauge Power Autoguide Flanger
Have one to sell?
ConditionNew
1 available
$7,582.00 USD
$5,950.00 USD
New
Turn up the power and automatically follow any edge—straight or curved.
This JAG FLANGER Model 1.6 automatically follows any edge—curved or straight. Use the convenient table slot to turn up a “starting flange” and let it go! A calibrated dial can be set for radii as small as 3-1/8″ (2″ when auto-guide is de-activated). Machine can be set to produce either of two flange heights—approximately 3/8″ (9.5 mm) or 1/4″ (6.4 mm). A non-releasing type head is suitable for open end fittings, straight and irregular curves. Automatically flange 16 to 24-gauge (.55 mm or 1.61 mm) material at speeds of 18 fpm (5.5 m/min).
Standard with JAG quality construction, this machine has an industrial motor; heavy 3/4” (19mm) chassis plate; and an arc-welded steel stand protected with top-quality primer and paint finish.
Specifications
Capacity: 16 – 24 gauge (0.55 – 1.61 mm)
Depth of Pocket: 3/8” (9.5 mm) or 1/4” (6.4 mm)
Speed: 18 fpm (5.5 m/min)
Motor: 2 HP (1.5 kw) – 115/230 volts, 60 cycle, single phase, AC, 1800 RPM
Dimensions: 26”L x 24W” x 38”H (660 x 610 x 965 mm)
Weight: 300 lbs. (136 kg)
We need to order this in for you, but delivery is FREE!
Turn up the power and automatically follow any edge—straight or curved.
This JAG FLANGER Model 1.6 automatically follows any edge—curved or straight. Use the convenient table slot to turn up a “starting flange” and let it go! A calibrated dial can be set for radii as small as 3-1/8″ (2″ when auto-guide is de-activated). Machine can be set to produce either of two flange heights—approximately 3/8″ (9.5 mm) or 1/4″ (6.4 mm). A non-releasing type head is suitable for open end fittings, straight and irregular curves. Automatically flange 16 to 24-gauge (.55 mm or 1.61 mm) material at speeds of 18 fpm (5.5 m/min).
Standard with JAG quality construction, this machine has an industrial motor; heavy 3/4” (19mm) chassis plate; and an arc-welded steel stand protected with top-quality primer and paint finish.
Specifications
Capacity: 16 – 24 gauge (0.55 – 1.61 mm)
Depth of Pocket: 3/8” (9.5 mm) or 1/4” (6.4 mm)
Speed: 18 fpm (5.5 m/min)
Motor: 2 HP (1.5 kw) – 115/230 volts, 60 cycle, single phase, AC, 1800 RPM
Dimensions: 26”L x 24W” x 38”H (660 x 610 x 965 mm)
Weight: 300 lbs. (136 kg)
We need to order this in for you, but delivery is FREE!
