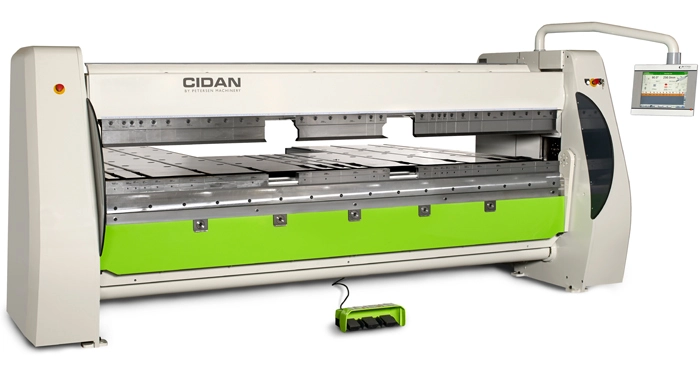

CIDAN FUTURA + FOLDER SERIES

Description

FUTURA PLUS adds a further development to our FUTURA series, and with the increased capacity it is possible to fold e.g. 11 ga thick sheet at 10 foot lengths.
• Like model FUTURA the FUTURA PLUS has graphic CNC control as standard.
• As standard FUTURA PLUS has twin drive of the folding beam with 2 motors – one at each side of the folding beam.
• Also the FUTURA PLUS is offered with the Combi Clamping beam, prepared for tools up to 7.87’’ height. Change of tool height does not require any machine change.
• For FUTURA PLUS also the Multifold tool system is offered, i.e. divided tools in lower and folding beams. Multifold includes height adjustable back gauge and must be combined with the Combi Clamping Beam. In this way all 3 beams will hold divided rails, making it possible to fold even very complicated profiles.
• FUTURA PLUS is patented due to several revolutionary construction solutions.

STANDARD EQUIPMENT

• Clamping beam with straight rail 30°
• Motorized back gauge AMF-1550 (page 13)
• Graphic CNC control ProLink (page 15)
• Folding beam rails .59’’ and 1.18’’ with quick clamping
• Lower beam rail
• Twin drive of folding beam
• Manual crowning of folding beam rail
• Frequency controlled folding movement
• Motorized adjustment of sheet thickness 0-.157’’
(manual .157’’-.787’’)

OPTIONS

• Combi Clamping Beam with 4.92’’ high divided rail with standard clamping (page 11)
• Combi Clamping Beam with 4.92’’ high divided rail with quick clamping (page 11)
• Combi Clamping Beam with quick clamping tools 5.9’’ or 7.87’’ height
• Multifold execution (combined with Combi Clamping Beam only)
• Other back gauge types (page 12-13)
• Special rails on enquiry
• .276’’, .394’’ or .787’’ folding beam rail with quick clamping
• Squaring arm
• Ball transfers in back gauge table
• Automatic lubrication
