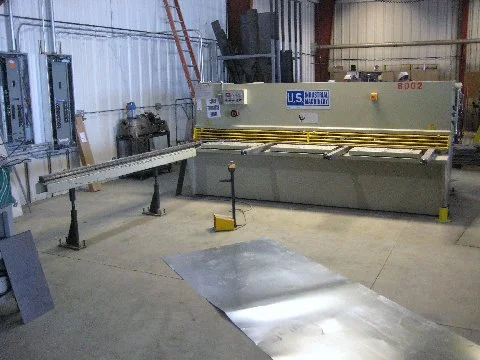

US INDUSTRIAL 10′ x 1/4″ Hydraulic Shear
Have one to sell?
ConditionUsed
1 available
Why buy USED when you can get this brand new shear? FREE Delivery from us.
STANDARD EQUIPMENT: (All comes with the machine)
Squaring Arm Bolt on table segments…qty of 3
High Carbon, High Chrome Shear Blades
Hold-downs faced w/anti-mar neoprene
Quantity of 24, 1” ball transfers
Swing Beam Design
Manual Quick Change Blade gap adj.
Pressure Sensing Hold downs
Squaring Arm, 43.5” from blade to end
Electric stroke adjustment
Stroke Counter
Operator control console
Front-controlled power back gauge
Shadow lighting
Blade Guard, Micro switch protected
Low noise gear pump
Hydraulic, Electrical Overload Protection
3 support arms
Automatic Swing-up on back gauge
We have both NEW & USED available, call us.
Sheet Size 126”
Shearing Capacity 1/4” Mild Steel @ 65000 PSI
Shear Angle 1 degree 30’
No Load Strokes 14
Throat Depth 5.5”
Adjustment Range Of Back Gauge 0.75”-36”
Hydraulic Oil Capacity 71 Gal.
Main Motor 15 HP
Net Weight 15,550 lbs
Dimensions (L x W x H) 157” x 63” x 63″
