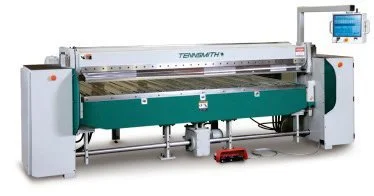

Tennsmith Model SBS12614 10′ x 14-ga CNC Roof/Sign Folder, Low Price Guarantee

Description

The Tennsmith SBS Series mechanical folding system utilizes a low maintenance design, coupled with an array of standard features for an attractive combination of high value and solid performance. The SBS incorporates a twin motor drive system for the folding beam. This allows the system to be fast and extremely accurate. Bending speeds up to 90 degrees per second can be easily achieved. Another advantage to this system is maintenance. Unlike with chain drive designs, there are no adjustments needed to this direct drive system. For maximum hemming capacity, another strong feature of the Tennsmith SBS Series is the center drive of the clamping system. The placement of the motor in the center of the machine maximizes power while reducing torque loss through the drive shaft. The benefit is a hemming capacity of 20 gauge for the SBS12614. The back gauge for the SBS Series features a twin ball screw design. The system is fast and extremely accurate. All three drive systems of the SBS Series: Folding beam, Clamping Beam and Back gauge are controlled by frequency inverters, giving the machine great accuracy. The support panels can be move back to allow gauging of parts with a down flange inside the machine (Z Bar etc.)

SBS control features:

Graphical Programming of Profiles
Hemming Macros for Open, Closed, and Teardrop hems
Radius Macro for Complex bending of different Radii (Cornice Work etc.)
Parts Counter
Automatic Blank Calculation
Bend Compensation for different material spring back and bending bar set-up
Material Handling Instructions
The brains behind the touch screen are cutting edge. Designed for harsh environments, the SBS control system will work with ease in any climate. The system features Flash memory for both the PLC and PC. This means if anything should happen to your system you can be up and running the next day without the need of onsite programming of replacement parts. All machine information is stored on the Flash drives. The design utilizes the latest technology.

The SBS12614 will handle 14-gauge mild steel, 16-gauge stainless up to 126 inches in bending length. Please contact Tennsmith for a complete listing of optional equipment.

The key to the SBS design is serviceability. One of the main thoughts that went into designing the SBS Series was service. Every design element and feature of the SBS had to easily be maintained and serviced. We feel so strongly about our design that the SBS Series carries a Three-Year Factory Warranty.

The SBS12614 Bending System and LM1014F series Shear are available in a special price “Performance Package” configuration. The Performance Package includes the standard configured SBS12614 and the LM1014F performance shear. Call for your very best price on this machine tool.
