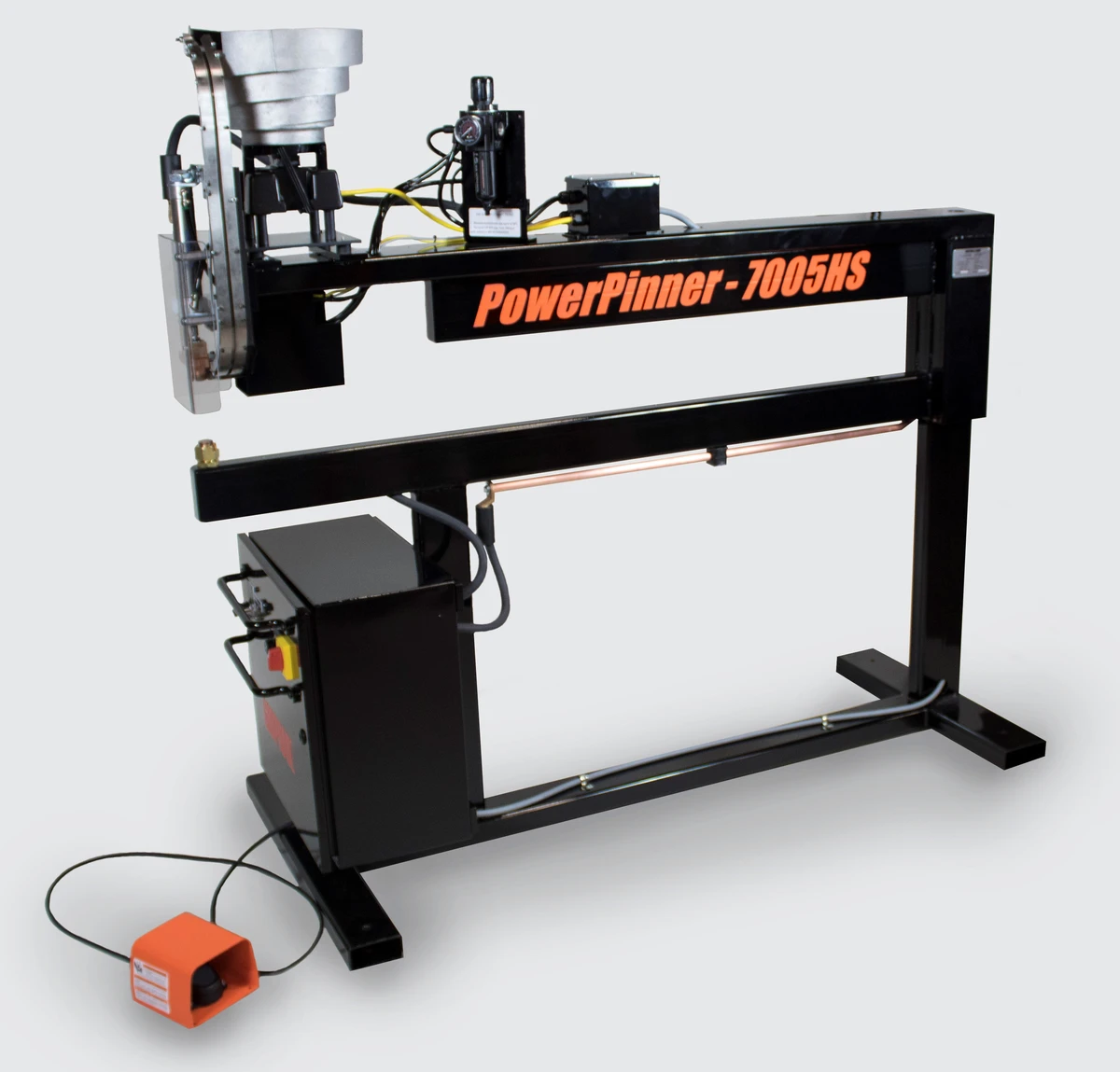

The power and simplicity of our 7005 with a movable weld head! Contractors who regularly line large fittings and straight duct will find the convenience of the PowerPinner Glider speeds their assembly and reduces their fabrication costs. The weld head travels a full 60 inches for lining 5-foot wide duct.
The head is moved with a multi-position extension arm and glides on specially designed bearings. A weld pin is set each time the operator squeezes the pistol grip’s trigger. Small duct sections can be easily lined by locking the weld head in the forward position, moving the extension arm to its vertical position and activating the foot pedal.
Moving Head Speeds production.
Flange Cutouts - Permit continuous lining of flat or L section flanged duct.
New Improved Reliability - The PowerPinner Glider 7105 Moving Head Welder uses a PLC (Programmable Logic Control) and non-contact proximity sensors in place of pneumatic valves and mechanical actuators.
Easy To Operate - Simple logical controls reduce operation training.
Standard 5 Foot Throat - Fastens large duct sections, reducing material handling.
Front Mounted Component Cabinet Affords easy access for service needs.
Visual Load Cycle - Quickly confirms electronic functions.
NEMA 12-Rated Electrical Cabinet - Protects electrical component to minimize machine down-time.
Lightweight Foot Pedal - Allows easy movement by operator; cord protector prevents damage.
Compact - Place between work tables for efficient work flow.
WE WILL NOT BE UNDER SOLD ON ANY GRIPNAIL PRODUCT.
Input Voltage 190-240 VAC 60Hz, 1 Phase, 30 Amp
Air Requirement: 2-3 CFM, 80 PSI
Working Depth 60"
Anvil Height 36"
Total Depth 71"
Total Width 32"
Weight 800 Lbs.
Freight Class 70
