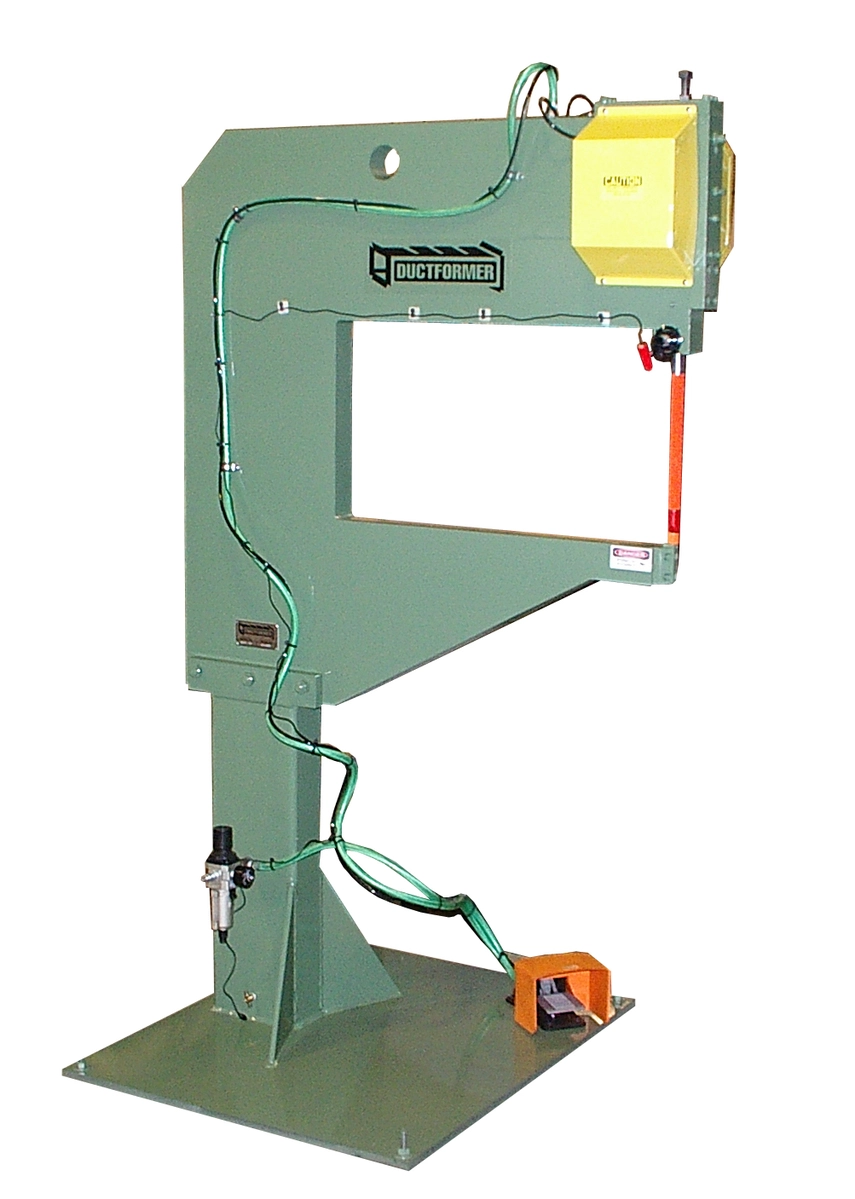

Powered Clinching Machine

Description

The Ductformer DFTL Series of Clinching machines fastens 2 pieces of metal together via toggle lock fastening system. Toggle locking is the fastest and most cost effective method to join 2 pieces of metal.
These are some of the benefits; – Replace Spot Welding and Riveting
– No Heat, No Fumes, or Damage to Material Finish
– Uses Standard Shop Air
– Fasten Pre-Painted Steel, Galvanized Steel, Aluminum and many more materials
SAFETY
Ductformer DFTL machines all include a low down-force safety feature which is standard and included in the price of all machines. This feature prevents series injury by using minimal pressure on the down-stroke until the punch tool is less the 1/4" from the full contact position. If an operator were to accidentally have a hand or finger under the punch during operation, this feature would prevent or reduce any serious injury.

The Ductformer DFTL machines use the least amount of air of any similar machine on the market. The simplicity of design also means that maintenance costs are very low. As with all of our machines most parts are off the shelf and can be purchased locally or directly from local suppliers.
LASER LOCATOR – Laser light locator is also a standard feature and included on all DFTL machines.
One (1) DFTL Series Clinching Machine. Unit will be capable of locking
two pieces of sheet metal from 30 Gauge up to 14 Gauge. Machine comes
with one set of tooling & laser punch locator. Additional tooling can be
purchased separately. Air Actuated (80 - 100 psi).
Price: $15,980. 00 - 14” Throat Depth
Price: $19,152. 00 - 26” Throat Depth
Price: $22,730. 00 - 30” Throat Depth

Terms:
Prior to Ship
Additional Tooling Available
(*All Models Come With One Complete Punch & Die Set)
Die C Capacity 28 – 20 Gauge -------------- $318.00
Punch for Die C ---------------------------------- $132.00
Die D Capacity 22 – 18 Gauge -------------- $318.00
Die E Capacity 18 – 14 Gauge -------------- $318.00
Punch for Die D & E 22 – 14 Gauge ------- $132.00
Die Leaves ----------------------------- $52.00 EACH
Die Leaf Bands ----------------------- $11.00
