DUCTFORMER Automatic Slip & Drive Cut to Length Coil Line System
Have one to sell?
ConditionNew
1 available
$49,300.00 USD
$49,150.00 USD
New

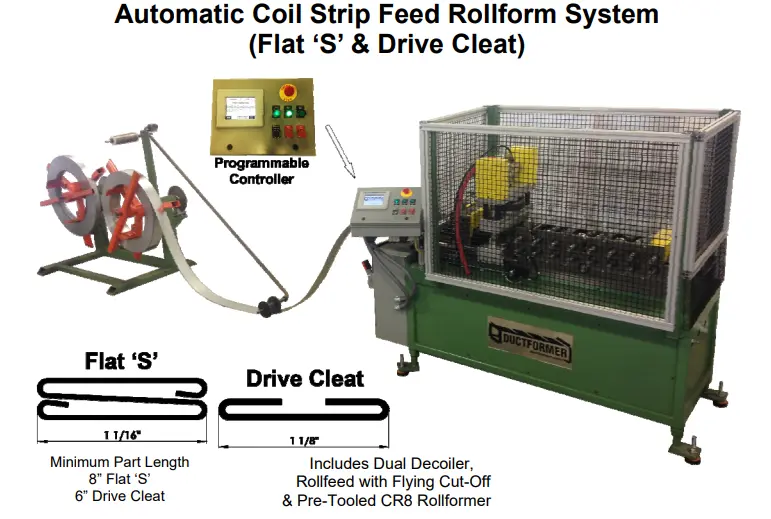

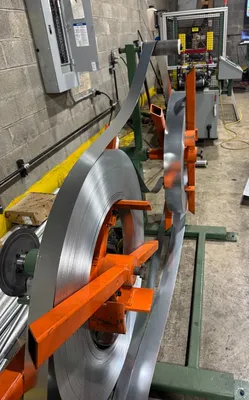

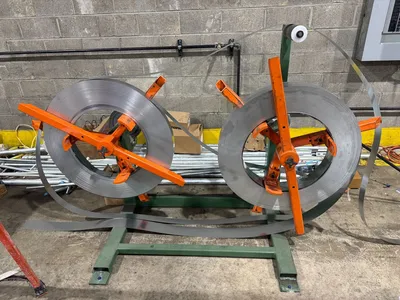

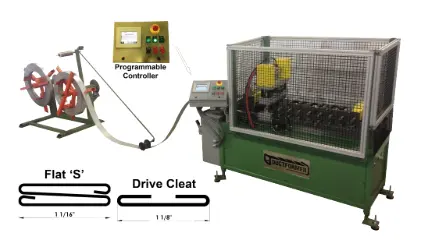

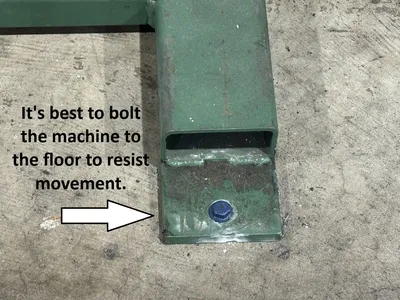

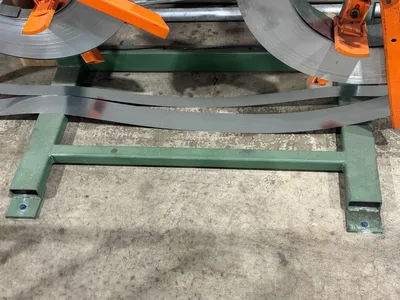

The Automated CR8-SDC Auto Feed Rollform System is designed to feed and form the Flat ’S’ and Drive Cleats on the inboard Rolls directly from coil stock. The Automated System consists of a Dual Station Coil Cradle, Flying Shear Cut Off Die, and Pre-Tooled Rollformer to form either Flat ‘S’ or Drive Cleat sections in a single pass-through operation. The Pre-Tooled Rollformer consist of one set of Hardened and Polished Steel Roller Dies to form the Drive Cleat Profile and one set of Hardened and Polished Steel Roller Dies to form the Flat ‘S’ Profile in a single pass-through operation. Rolls will form the section from 22 – 26 gauge galvanized mild steel.

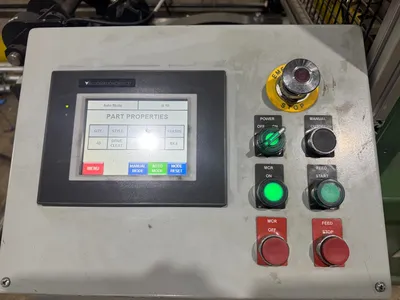

A User Friendly / Programmable Controller will sequence the strip feed and cycle the Cut Off Die based on simple batch quantity and part length inputs. Precision craftsmanship and materials with direct drive oil bath gear reduction make the CR8 the quietest machine in its class! See the difference, hear the difference!
8 Station Rollformer
All Gear Drive (“off the shelf”)
Self-adjusting Full Gauge Range
Oil Bath Gear reduction transmission
Hardened tool steel Entrance Guides
Hardened & Polished Rolls
Maintenance free Anti-friction Sealed Roll Bearings

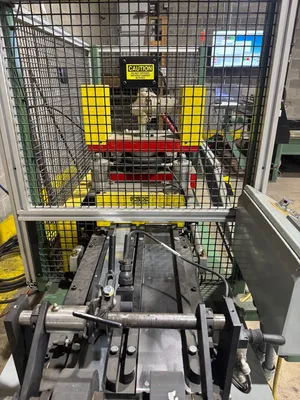

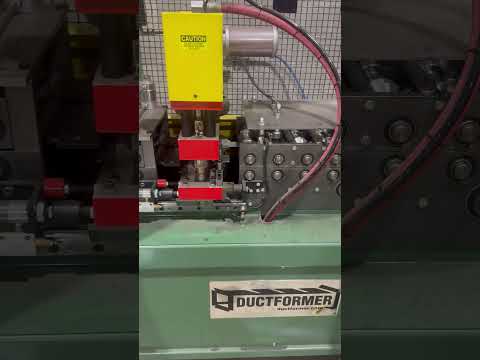

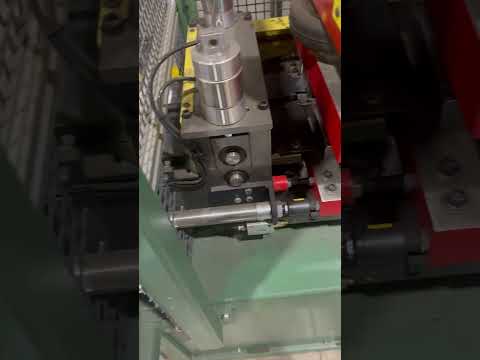

Pneumatic Flying Cut-Off
Efficiency: CR8 Auto Feed vs. Manual Processing
Performance Feature
Ductformer CR8 Auto Feed Standard Manual Rollformer
Raw Material Continuous Coil Stock Pre-Cut Metal Strips
Labor Step Automated Shearing & Feeding Manual Shearing & Hand Feeding
Drive System All-Gear / Oil Bath (Quiet) Chain and Sprocket (Noisy)
Precision Programmable PLC Control Manual Operator Measurement
How does the “Flying Shear” benefit production? The Pneumatic Flying Cut-Off Die allows the machine to cut the Flat ‘S’ or Drive Cleat to length without stopping the feed process. This ensures maximum throughput and prevents the material distortion often found in stationary shear systems.
CALL TOLL FREE FOR YOUR DELIVERED PRICE ON THIS COIL SYSTEM @ 800-753-0393, we have experience on the competition's lines so please give us a call. Thanks.
Specifications
Gauge Range………………………..22-26 Ga.
Length………………………………………225”
Passline Height……………………………..35”
Width………………………………………….39”
Motor………………………………………..5 Hp
Voltage……………………………….220 / 440
Electrical………………………3 Phase / 60Hz
Shipping Weight……………….2,200 Pounds
Line Speed……………………………...24 FPM
The Automated CR8-SDC Auto Feed Rollform System is designed to feed and form the Flat ’S’ and Drive Cleats on the inboard Rolls directly from coil stock. The Automated System consists of a Dual Station Coil Cradle, Flying Shear Cut Off Die, and Pre-Tooled Rollformer to form either Flat ‘S’ or Drive Cleat sections in a single pass-through operation. The Pre-Tooled Rollformer consist of one set of Hardened and Polished Steel Roller Dies to form the Drive Cleat Profile and one set of Hardened and Polished Steel Roller Dies to form the Flat ‘S’ Profile in a single pass-through operation. Rolls will form the section from 22 – 26 gauge galvanized mild steel.
A User Friendly / Programmable Controller will sequence the strip feed and cycle the Cut Off Die based on simple batch quantity and part length inputs. Precision craftsmanship and materials with direct drive oil bath gear reduction make the CR8 the quietest machine in its class! See the difference, hear the difference!
8 Station Rollformer
All Gear Drive (“off the shelf”)
Self-adjusting Full Gauge Range
Oil Bath Gear reduction transmission
Hardened tool steel Entrance Guides
Hardened & Polished Rolls
Maintenance free Anti-friction Sealed Roll Bearings
Pneumatic Flying Cut-Off
Efficiency: CR8 Auto Feed vs. Manual Processing
Performance Feature
Ductformer CR8 Auto Feed Standard Manual Rollformer
Raw Material Continuous Coil Stock Pre-Cut Metal Strips
Labor Step Automated Shearing & Feeding Manual Shearing & Hand Feeding
Drive System All-Gear / Oil Bath (Quiet) Chain and Sprocket (Noisy)
Precision Programmable PLC Control Manual Operator Measurement
How does the “Flying Shear” benefit production? The Pneumatic Flying Cut-Off Die allows the machine to cut the Flat ‘S’ or Drive Cleat to length without stopping the feed process. This ensures maximum throughput and prevents the material distortion often found in stationary shear systems.
CALL TOLL FREE FOR YOUR DELIVERED PRICE ON THIS COIL SYSTEM @ 800-753-0393, we have experience on the competition's lines so please give us a call. Thanks.
Specifications
Gauge Range………………………..22-26 Ga.
Length………………………………………225”
Passline Height……………………………..35”
Width………………………………………….39”
Motor………………………………………..5 Hp
Voltage……………………………….220 / 440
Electrical………………………3 Phase / 60Hz
Shipping Weight……………….2,200 Pounds
Line Speed……………………………...24 FPM
