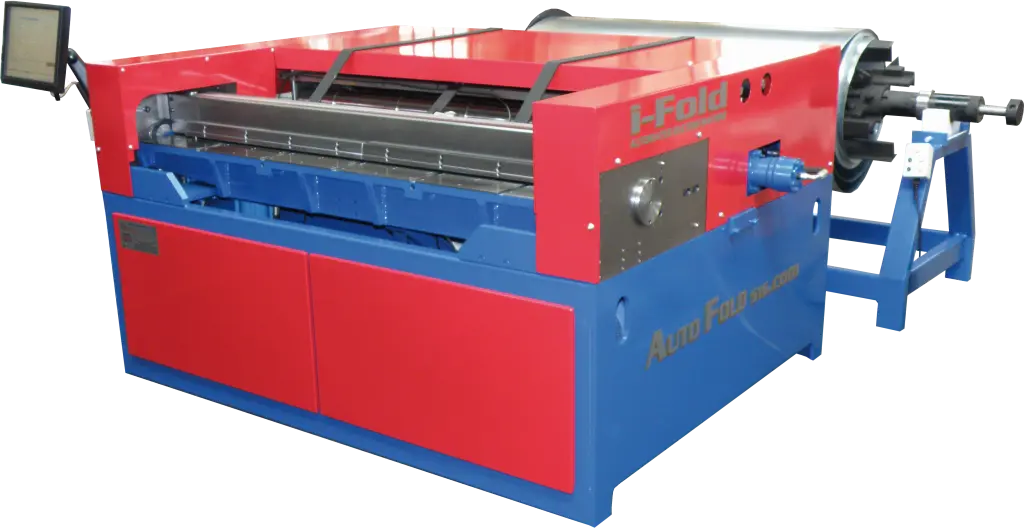

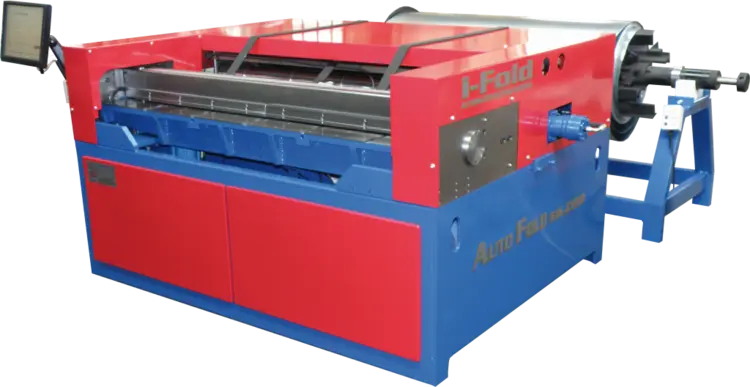

AF i-Fold
The i-Fold offers most of the functionality of a conventional coil line with the advantage of a vastly reduced floor space requirement (6ft 6in x 10ft). ANY Shop owner can benefit by owning an i-fold.
The i-Fold allows the operator to use standard coil widths, in multiple gauges up to 16ga, and manufacture ductwork from a minimum of 5in x 5in.

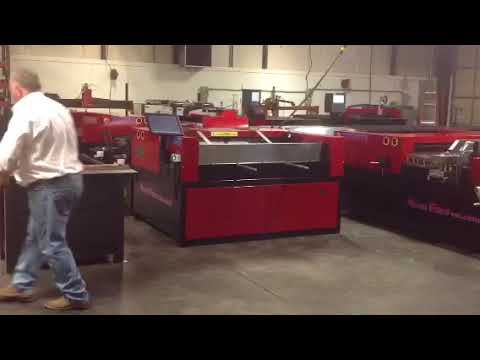

The fully hydraulic system is controlled by the AutoFold v8 Control System that has been designed specifically for this machine. The input is through a dedicated 14in touch screen controller that utilizes a Windows™ CE platform to run the AutoFold Standard Software Program. WATCH OUR VIDEO SHOWING ONE MAN MAKING DUCTWORK BY HIMSELF WITH THE LINE, 20-SUPER SPEED PITTSBURGH AND A POWER CLEATBENDER. We have Super Speeds available to ship with a new coil line and we have new or used power cleatbenders IN STOCK ready to ship as well. FREE FREIGHT on these machines with the purchase of a line.
7 Roll Leveller System consisting of 2 Entrance Drive Rolls, 3 Leveller Rolls and 2 Exit Bead Rolls.
Shear Blades, 4 sides, upper and lower, for extended life
Maximum Working Gauge: 16ga
Maximum Material Width: 5ft
AutoFold v8 Controller with full AutoFold Windows™ CE Software including make quick, jobs and self-diagnostics programs.
Maximum Working Gauge: 16ga
14in Touch Screen Monitor with fittings, mounted on the left or right side of the machine.
One “A” frame coil holder with spindle. (Maximum coil weight 10,000lbs at 5ft wide)
