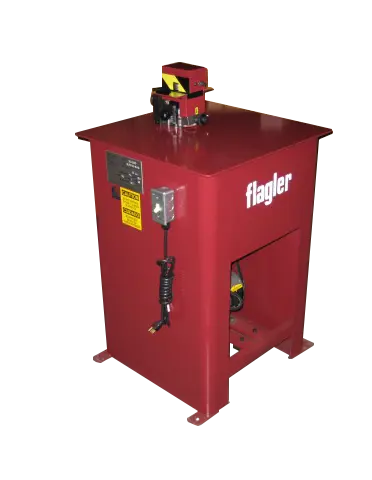

The 36-000 Button Punch Snaplock Power Flanger is for manufacturing fittings using the button lock seam rather than Pittsburgh 2 step operation, first the flange is formed then the buttons are punched. This machine is built with a heavy duty cast iron gear housing with oil bath and complete with Flange Follower.
Specifications:
Capacity: 20-26 Ga.
Height of Flange: 3/8" High
Speed: Approx. 18 feet per minute.
Motor: 3/4 HP 115/1/60/1800 RPM .
Drive: Vee Belt.
Base: Arc Welded Steel. heavy Top Plate
Dimensions: 24" long, 24" wide, 38 5/8".
Feed Table Height 34 5/8"
Shipping Weight: Approximately 250 pounds 800-753-0393
Capacity: 20-26 Ga.
Height of Flange: 3/8″ High
Speed: Approx. 18 feet per minute.
Motor: 3/4 HP 115/1/60/1800 RPM
Drive: Vee Belt
Base: Arc Welded Steel. heavy Top Plate
Dimensions: 24″ long, 24″ wide, 38 5/8″. Feed Table Height 34 5/8″
Shipping Weight: Approximately 250 pounds
