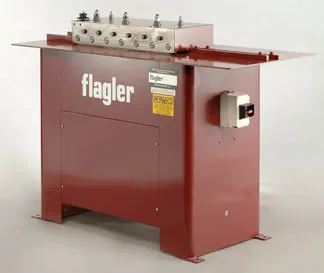

The Flagler 16 Ga. Heavy Duty Pittsburgh is designed for heavy gauge Pittsburgh locks. Complete with hardened feed gauge, 3 piece roll/shaft/gear construction, and calibrated dial for 16-20 Ga. mild steel.
Capacity: 16-20 Ga.
Depth of Pocket: 1/2". Uses approx. 1 1/2" of material
Extended Shafts: For 1 set of Aux. Rolls
Speed: Approximately 45 feet per minute.
Motor: 3 HP 230/460/3/60/1800 RPM .
Drive: Double Vee Belt.
Base: Arc Welded Steel. Heavy top plate.
Dimensions: 56" long, 24" wide, 41" high Feed table height 34 5/8"
Shipping Weight: Approximately 720 pounds.
Auxiliary Tooling Available
½” Double Seam Rolls
3/8” Double Seam Rolls
7/16” Right Angle Flange Rolls
¾” Standing Seam Rolls
5/16” Pittsburgh Rolls
5/8” Tap-In (3 in 1) Rolls
5/8” End Cap Rolls
½” Tap-In (3 in 1) Rolls
1 1/8” Drive Cleat Rolls
1 1/8” Drive Cleat Rolls with Slitter
½” x 180° Hem Rolls
½” Male Button Lock Rolls
This machine is typically in stock for immediate delivery call 800-753-0393 for this high quality 100% Made in USA machine tool.
Capacity: 16 and 18 Gauge and lighter
Depth of pocket: 5/16″ width, hammer over edges. Uses approximately 1″ material
Extended Shaft: For standard Aux rolls
Speed: Approx. 30 feet per minute
Motor: 16 Ga. 2HP 230/460 Volt 3Phase / 18 Ga. 1-1/2HP 230/460 Volt 3Phase
Drive: Vee Belt
Base: Arc Welded Steel
Dimensions: 56″L x 24″W x 41″H, feed table height 34-5/8″
Shipping weight: 16 Ga. 720 lbs, 18 Ga. 700 lbs
