Safety Equipment to comply w/ ANSI

Description

NEW! ROTO-DIE LIGHT CURTAIN SYSTEM
Roto-Die, Inc. introduces a New Light Curtain System that is compatible with ALL Roto-Die machines. This system has been engineered to meet or exceed Safety Requirements for Hydraulic Power Presses per ANSI B11.2-1995 and Safety Requirements for Power Press Operation per CAN/CSA-Z142-02-1995.

As a reminder, it is ultimately the responsibility of the employer to ensure the safety of their employees as only they know how equipment is used in their facility (ANSI 4.2.1 and 8.1.1 and CSA 5.3.1). Everything required for installation is included.

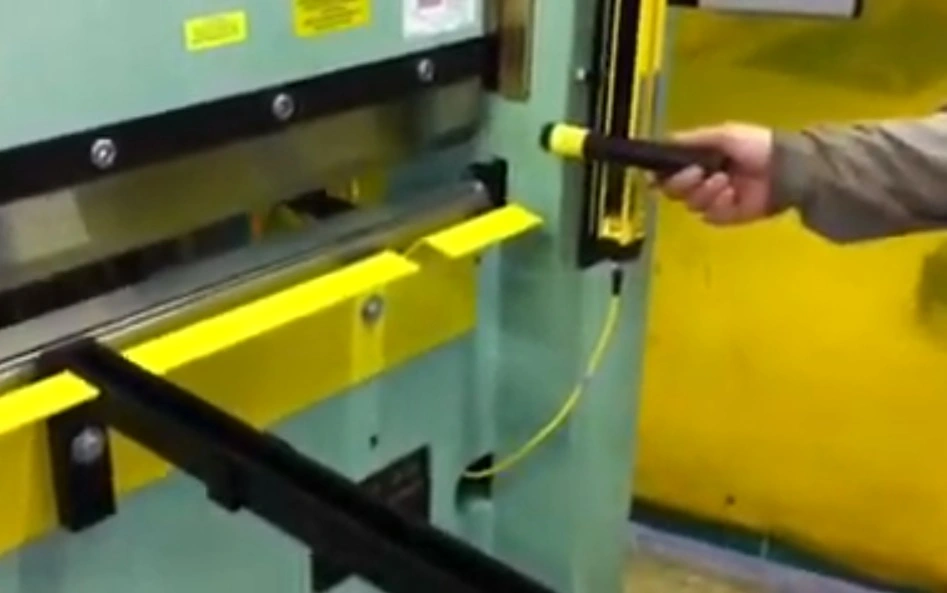

The Light Curtain is active when the Ram is in its top (home) position. Interruption of the Light Beam during the down stroke will stop and reverse direction of the Ram. When the Upper Die reaches the Muting Point (1/4” above the Lower Die), the Light Curtain is completely Muted*. Bending motion (or “drooping”) of the sheet metal will not interrupt operation

*Note: If you are bending flanged material such as TDC, you must lower the Ram to its Muting Point (via jogging the foot pedal) before placing flanged material in press.

Safety System Features:

New Main Control Panel including Lockout/Tagout ability
18" Category 4 Light Curtain with Floating Blanking to offer maximum protection above the Upper Die and below the Lower Die
Redundant (Primary and Secondary) Proximity Sensors
Built-In-Muting
Redundant (Primary and Secondary) Self-Monitoring Electronic Solenoid Valves
Push-button operator station
Double-Ended Quick-Connect cables for Valves (2), Proximity Sensors (2), and Light Curtain Sticks (2)
Front fixed-guard for added safety in the die area
New piping, high-pressure fittings and all installation hardware
Manual jog of upper die remains intact

CALL FOR CURRENT PRICING! 800-753-0393
