Double Wall Spiral Pipe System

Now one man can complete the operation of double wall spiral. From wrapping perforated/Spiral with insulation to sliding on the outer spiral shell. Save shop time, labor and floor space. With a massive 600 lb. capacity, this tool allows you to insulate 10" to 36" spiral and up to 60" with the optional adapter. We have a second model that can accomodate OVAL SPIRAL with a greater range of sizes AND accommodate spiral up to 78-inches in diameter, this is the XL model. Both machines can be easily moved around the shop and used for a variety of operations such as flange installation.

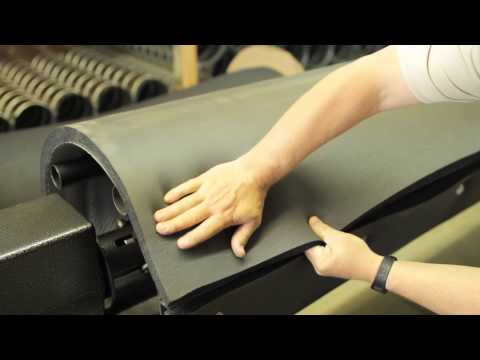

Weld-pins attach to the perforated spiral allowing the men to fasten the line. Advance the spindle so the insulation wraps around the perforated spiral, cut the insulation off at the proper length, and then tape the butted ends together or use the welded pins. The machine consists of a 110-vlt, 15-Amp reversible variable speed control with $-stop and Spindle lock and wireless remote start and stop function. There is nothing else like it on the market, so STOP wasting time and paying high labor costs! Lead time is only 6-8 weeks!!!!
Price Includes: SideLiner Rotating Mandrel For 10’ Duct 10” to 36” Diameter
Wireless Remote Start/Stop Function
SideLiner Has Variable Speed Control and is Reversible
SpiraLift Adjustable Lift Table
Requires 120 Volt 15 amp circuit
Features Include the following:
Variable Speed 1/3 HP Gear Motor, Requires 120 Volt 15 Amp Circuit
Expansion Arms, 2” Diameter; Extension Arms, 2” Diameter (Optional)
Remote Start/Stop Function with Reversible Rotation
3.5” Square Center Boom For Approx 600 Lb. Weight Capacity
HD Bearings For Frictionless Rotation Of Boom
3/4” Ball Screw Movement For Expansion Arms
Expansion Connector Bars, 5/16” X 1 1⁄2”
Ball Casters For Easy Placement Of Machine
Control Panel C/W Direction Switch, Speed Dial, On/Off & E Stop
Hydraulic Spiralift Mobile Cart With Multi-Position Rollers
Mobile Insulation Cradle For 60” Wide Rolls (optional)

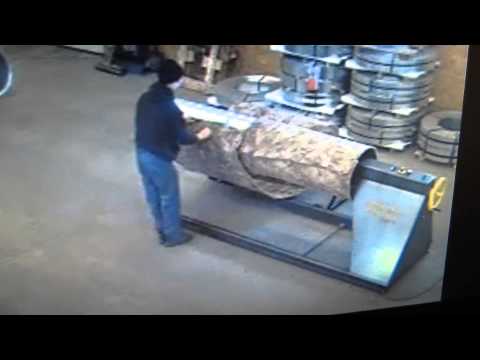

WATCH (1) man easily by himself wrap a 10 foot long Spiral Pipe in under 5 minutes, SEE VIDEO BELOW.
OUR PRICE SHOWN IS DELIVERED. DO NOT GUESS AT THE FREIGHT COSTS!!! They're expensive!

SIDELINER

SideLiner Spec's.pdf
SideLiner Info Sheet

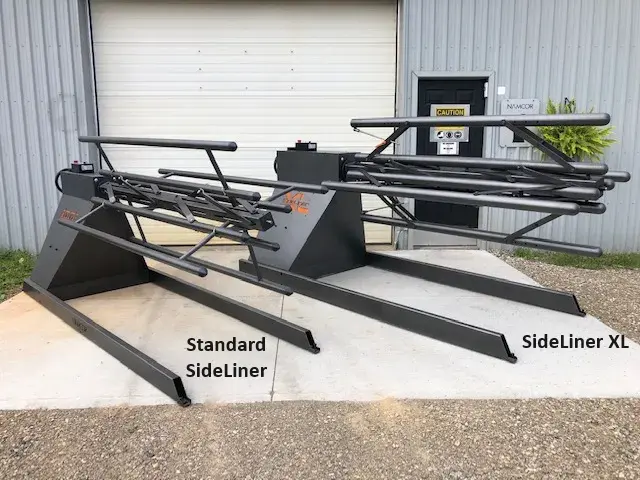

SIDELINER XL
- Variable Speed 1/3 HP Gear Motor
- Requires 120 Volt 15 Amp Circuit
- Expansion Arms 2" Diameter
- Wireless Remote Start/Stop Function
- Reversible Rotation and Variable Speed Control
- 3.5" Square Center Boom for Approx. 600 Pound Weight Capacity
- HD Bearings for Frictionless Rotation of Boom
- 3/4" Ball Screw Movement for Expansion Arms
- Expansion Connector Bars 5/16" x 1 1/2"
- Ball Casters for Easy Placement of Machine
- Control Panel comes with Direction Switch, Speed Dial, On/Off and E-Stop
- Hydraulic SpiraLift Mobile Cart with Multi-Purpose Rollers
- Mobile Insulation Cradle for 60" Wide Rolls (ADDITIONAL OPTION)
- Rotating Mandrel for 10' Duct 10" to 36" Diameter
- SpiraLift Adjusting Lift Table
- Variable Speed 1/3 HP Gear Motor
- Requires 120 Volt 15 Amp Circuit
- Expansion Arms 3" Diameter
- Extension Arms 3" Diameter with Variable Length
- Designed to Accommodate Oval Spiral with Greater Range of Sizes and Round Spiral up to 78"
- Wireless Remote Start/Stop Function
- Reversible Rotation and Variable Speed Control
- Cabinet 6" Higher/Wider than Standard SIDELINER
- 5" Square Center Boom for Approx. 1200 Pound Weight Capacity
- HD Bearings for Frictionless Rotation of Boom
- 1" Ball Screw Movement for Expansion Arms
- Expansion Connector Bars 1/2" x 1 1/2"
- Ball Casters for Easy Placement of Machine
- Control Panel comes with Direction Switch, Speed Dial, On/Off and E-Stop
- SIDELINER XL Weight Approx. 50% More than Standard SIDELINER
- Hydraulic SpiraLift Mobile Cart with Multi-Purpose Rollers
- Mobile Insulation Cradle for 60" Wide Rolls (ADDITIONAL OPTION)
- Rotating Mandrel for 10' Duct 14" to 78" Diameter
- SpiraLift Adjusting Lift Table

- Variable Speed 1/3 HP Gear Motor
- Requires 120 Volt 15 Amp Circuit
- Expansion Arms 2" Diameter
- Extension Arms 2" Diameter
- Wireless Remote Start/Stop Function
- Reversible Rotation and Variable Speed Control
- 3.5" Square Center Boom for Approx. 600 Pound Weight Capacity
- HD Bearings for Frictionless Rotation of Boom
- 3/4" Ball Screw Movement for Expansion Arms
- Expansion Connector Bars 5/16" x 1 1/2"
- Ball Casters for Easy Placement of Machine
- Control Panel comes with Direction Switch, Speed Dial, On/Off and E-Stop
- Hydraulic SpiraLift Mobile Cart with Multi-Purpose Rollers
- Mobile Insulation Cradle for 60" Wide Rolls (ADDITIONAL OPTION)
- Rotating Mandrel for 10' Duct 10" to 36" Diameter
- SpiraLift Adjusting Lift Table
The SideLiner consists of 110-volt, 15-amp, reversible variable speed control with E-stop and spindle lock, and wireless remote start/stop function.
With the SIDELINER Insulating Spiral Pipe Just Got Easier!
Be sure to see our Insulation Cradle and SpiraLift
- Custom Spindle Lengths & Capacities
