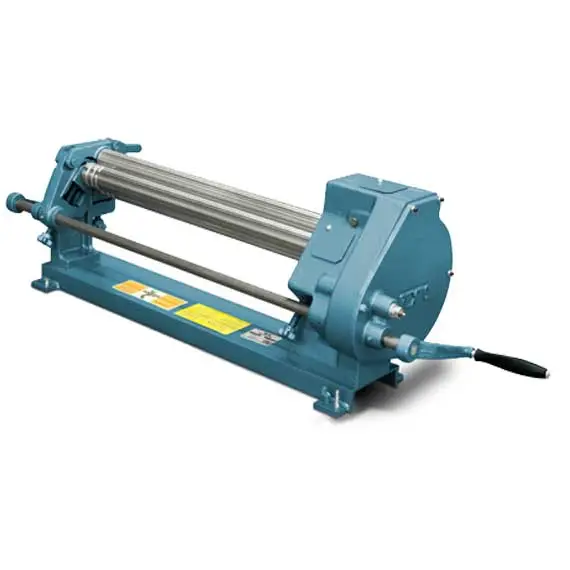

The 3-Inch hand rolls are furnished with all three rolls driven. Rear roll has three full length longitudinal grooves. Machine operates through back shaft at 4:1 gear reduction. Two handles supplied for heavy capacity forming. Pexto Slip rolls are engineered for long life and dependable accuracy.
Smooth rear roll (no grooves) optional
Wiring grooves in bottom and rear rolls.3/8", ", 5/8"
OPTIONAL: No. 418 Heavy-duty welded floor mount stand is available along with our three (3) -YEAR FACTORY WARRANTY INCLUDED!! MADE IN THE USA
SEE USED SECTION, WE HAVE ONE AVAILABLE
The Model: 418 has a capacity in Mild Steel: 16 to 18 Gauge
Max. Sheet Length: 48"
Roll Diameter: 3"
Minimum Forming Radius: 1.5"
Gearing Ratio: 4:1
Wiring Grooves: 3/8", 1/2", 5/8"
Weight: 793 lbs.
