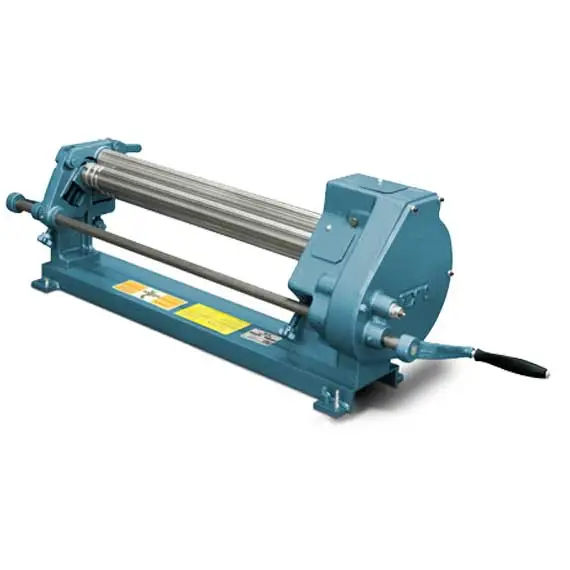

Roper Whitney Model 416 36″ x 16-gauge Manual Sliproll
Have one to sell?
ConditionNew
1 available
New
The 3-Inch hand rolls are furnished with all three rolls driven. Rear roll has three full length longitudinal grooves. Machine operates through back shaft at 4:1 gear reduction. Two handles supplied for heavy capacity forming. Pexto Slip rolls are engineered for long life and dependable accuracy.
Smooth rear roll (no grooves) optional
Wiring grooves in bottom and rear rolls. 3/8", ", 5/8"
* OPTIONAL: NO. 416 Heavy-duty welded floor mount stand available
3-YEAR FACTORY WARRANTY INCLUDED!! MADE IN THE USA!
This is the Model 416 manual sliproll with a capacity in Mild Steel: 14 to 16 Gauge
Max. Sheet Length: 36"
Roll Diameter: 3"
Gearing Ratio: 4:1
Minimum Forming Radius: 1.5"
Wiring Grooves: 3/8, 1/2, 5/8
Dimensions: 69"L X 19"W X 19"H
Weight: 720 lbs.
