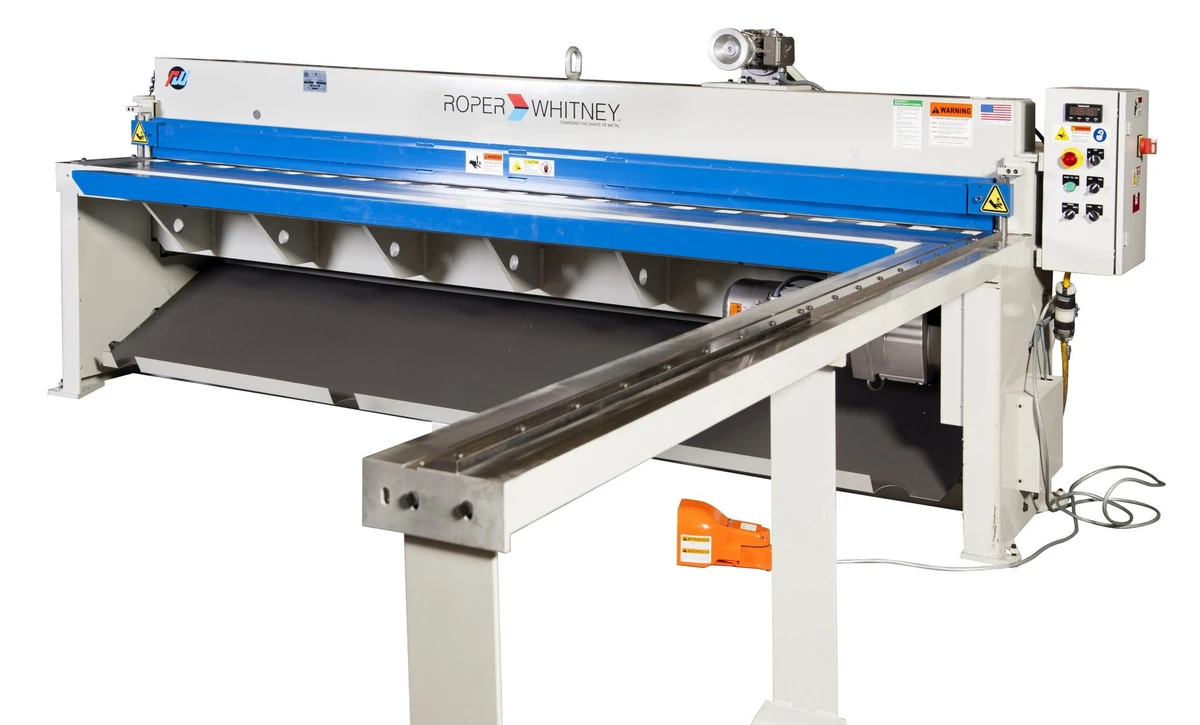

Roper Whitney Model 10M14 10′ x 14-ga Mechanical Power Shear

Description

The Roper Model 10M14 has a maximum shearing capacity of 14 gauge Mild Steel, .125 Aluminum or 18-gauge Stainless steel. Making it the perfect sign shop, roofing or HVAC shop shear.
Working Length: 121.25"
Back Gauge Travel: 24"
Approx. Weight: 5500 lbs.
Power: 5 HP
Standard Voltage: 230 Volt, 3 Phase, 60 HZ
Strokes Per Minute: 35

FEATURES:
* Rugged welded construction
* Single or continuous cycle
* Accurate Table Side-Squaring Gauges
* Recessed Inch/Metric Bed Scales
* Combination Material Hold-Down/Finger Guard with Non- Marring Urethane and Positive Spring Actuation
* High Carbon/High Chrome long life tool steel blades
* Upper and lower blades interchangeable
* Non-Metallic Gibs
* Maintenance free self lubricating Bearings
* Fully guarded safety foot switch
* Low power consumption
* Smooth quiet reliable operation

The PRO PACKAGE INCLUDES: Front Operated Powered Back gauge System, Four Foot Squaring Arm, Two Front Support Arms, and Air Operated Sheet Support System.

PROPACKAGE OPTIONS:
Package "R" is the Rear Return Sheet Support System
Package "F" is the Front Return Sheet Support System
Package "FC" is the Front Return Sheet Support System with Movable Material Cart

OPTIONAL ACCESSORIES FOR THE 10M14 include:
* Digital Read Out
* Stroke Counter
* Work Light
* Front Support Arms (pair)
* Side Squaring Arm w/Inlaid scale w/Fixed Stop (4′)
* Side Squaring Arm 4′ to 8′
* Side Squaring Arm 8′ to 12′
* Additional Flip Up stops for Squaring arm
Call 800-753-00393 or email for the VERY LOWEST PRICE ALLOWED DELIVERED ON THIS USA MADE SHEAR
