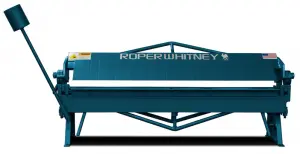

Roper Whitney Model U416 4′ x 16-ga Box & Pan Brake

Description

Connecticut bench mounted hand brakes are rugged, dependable USA-made tools. The model U416 is a heavy duty bench brake suitable for box and pan or straight bending in up to 16-gauge mild steel. The brake features a removable apron angle and apron insert permitting 1?4-inch reverse bends in lighter materials. The front to rear adjustment of the U416 allows for a wide range of radius bending. Standard equipment includes: an apron stop rod for repeat bends, extension handles and counterweight to help reduce fatigue when using the brake. Connecticut bench-mounted hand brakes provide an economical means of performing a wide range of sheet metal bending and forming operations. These brakes are of all- steel welded construction, readily adjustable and backed by an industry leading 3-Year Factory Warranty.
WEIGHT: 495 lbs
DIMENSIONS: 61 × 20 × 28 in
CAPACITY MILD STEEL, 1-INCH FLANGE, WITH BENDING BAR AND ANGLE IN PLACE: 16 ga/ 1.60 mm
CAPACITY MILD STEEL, 1-INCH FLANGE, WITH BENDING ANGLE REMOVED : 20 ga./ 1.00 mm
CAPACITY MILD STEEL, 1-INCH FLANGE, WITH BENDING BAR AND ANGLE REMOVED: 24 ga./ 0.61 mm
MINIMUM REVERSE BEND (BAR AND ANGLE REMOVED): 1/4 in/ 6.35 mm
MAXIMUM LIFT OF BEAM: 1-1/4 in/ 31.75 mm
FINGER WIDTHS: 2,3 and 4 inch/ 51, 72 and 101 mm
MAXIMUM DEPTH OF BOX: 4 in/ 102 mm
FRONT TO REAR ADJUSTMENT: 5/8 in/ 16 mm
BENCH STAND (OPTIONAL) 56" long, 18" wide, 26" high
