Tinknocker TK T-D-P Roll Former

Description

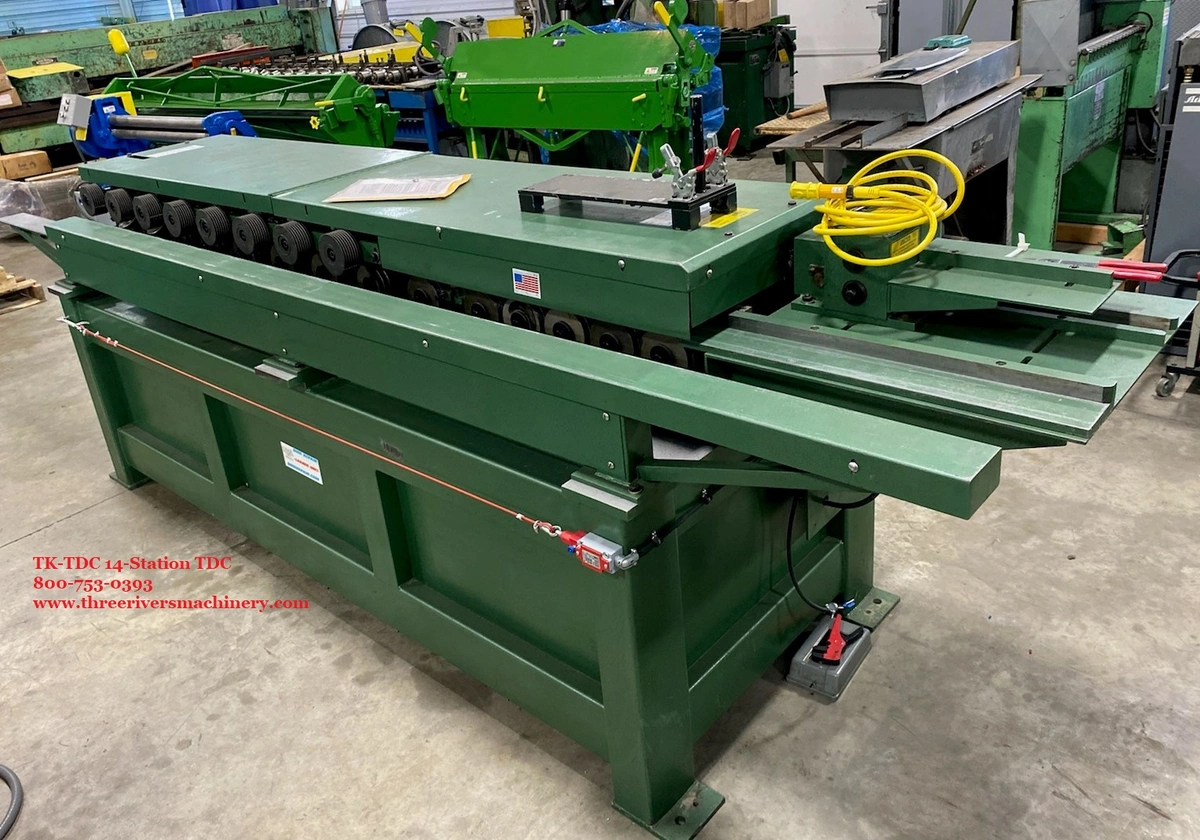

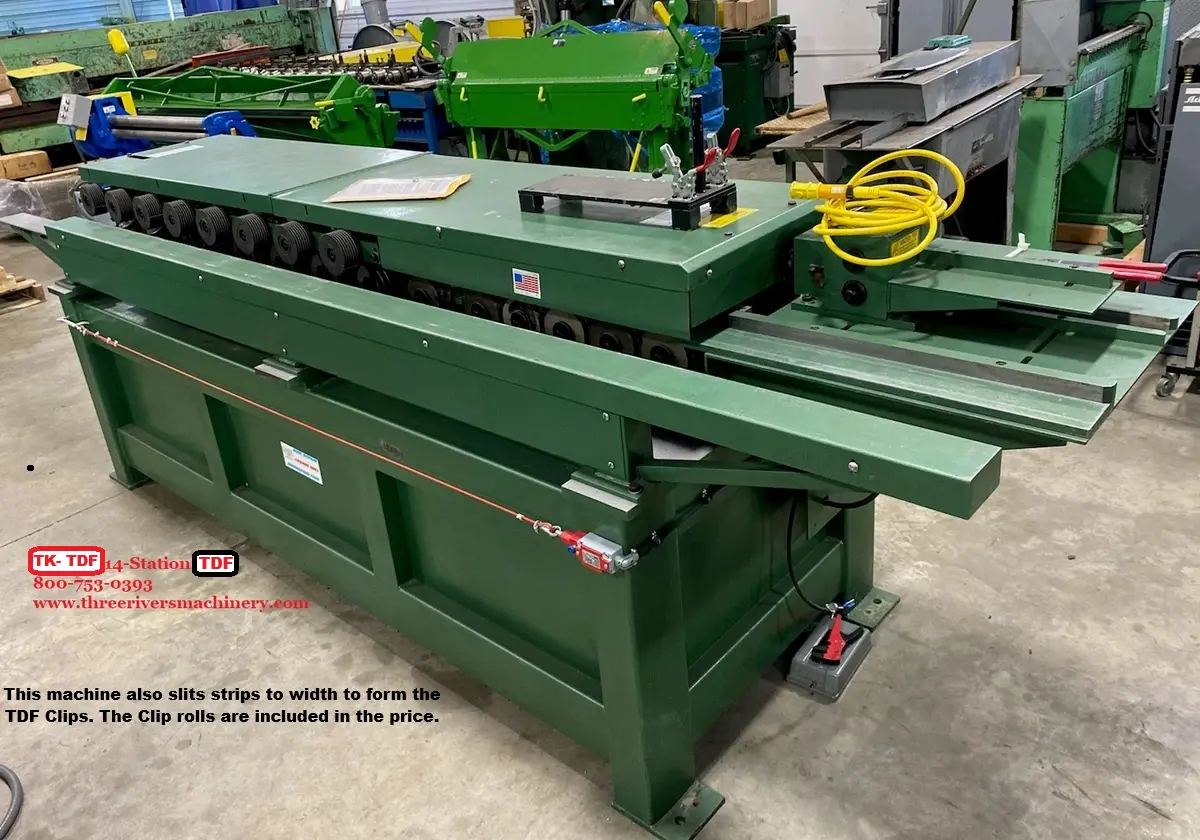

This is a new Tinknocker TDP/TDF Rollformer. Makes the TDF profile with Self slitting clip roll tooling installed on the machine from the factory. Includes the start stop jog pendant cord with front E-Stop pull cord. IT CAN BE DELIVERED VIA HOTSHOT TRUCK AT THIS PRICE!!!!!!

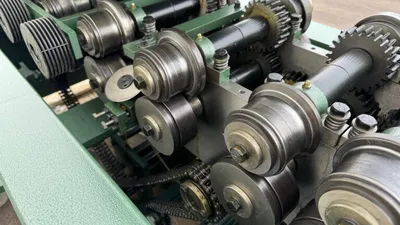

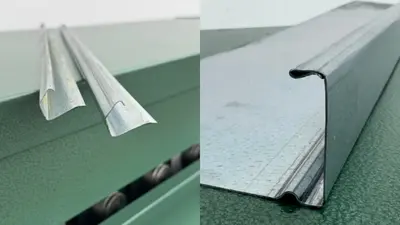

This 14 station TDF rollformer comes standard with the TDF-P rolls and the Clip rolls outboard, leaving the center tool space for other profile rolls. This TDC-P roll former will roll sheet metal into leak proof, sealable TDC-P flanges at speeds of up to 50 fpm, automatically! Start saving time and money by forming your own TDC-P flanges – with their snap-on corners – and eliminate spot welding altogether. The TDC-P roll former works with Autolock stiffeners to greatly reduce tie rod and angle iron use.
Specifications:
Capacity: T-D-P 18-24 ga. for T-D-P Uses approx. 1-7/8″ of material on T-D-P 50 feet per minute T-D-P Clip (min. length 20″) 22 ga. 2-1/8″ 2 1/8″
Material Capacity, TDF-Profile: 18-24g
Material Capacity, Clip Profile: 22-gauge
Depth of Pocket, TDF-Profile: 1-7/8"
Depth of Pocket, Clip Profile: 2-1/8"
Forming Stations: 14
Speed: 50 FPM
Motor: 10 HP, 230/460V, 3ph, 1800 RPM
Dimensions: 38” x 137” 46”
Weight: 3450 lbs.
