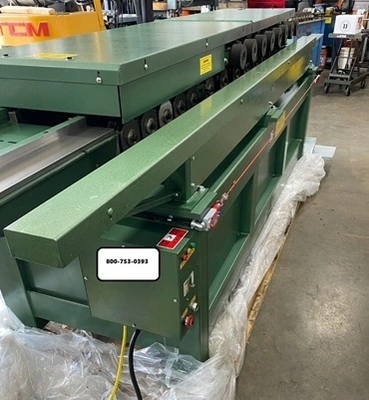

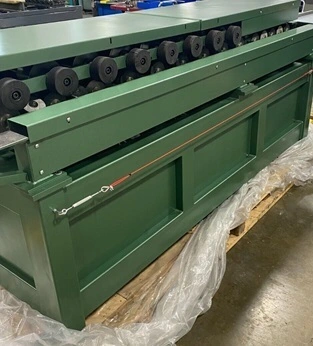

Tinknocker 14-Station TDC Machine Rollformer with Clip

Description

This is a new Tinknocker TDP Rollformer. Makes the TDC profile. With Self slitting clip roll tooling. With Start stop jog pendant cord. With front e stop pull cord. DELIVERED AT THIS PRICE!!!!!!

Specifications:
Weight: 3450 lb.
Dimensions: 38 x 136.75 x 46 in
Capacity: T-D-P 18-24 ga. for T-D-P Uses approx. 1-7/8″ of material on T-D-P 50 feet per minute T-D-P Clip (min. length 20″) 22 ga. 2-1/8″ 2 1/8″
Forming Sections: 14
Shaft Diameter: 1.25″
Passline: 38.625″
Forming Speed: 50fpm
This 14 station TDC rollformer comes standard with the TDC-P rolls and the Clip rolls outboard, leaving the center tool space for other profile rolls. This TDC-P roll former will roll sheet metal into leak proof, sealable TDC-P flanges at speeds of up to 50 fpm, automatically! Start saving time and money by forming your own TDC-P flanges – with their snap on corners – and eliminate spot welding altogether. The TDC-P roll former works with Autolock stiffeners to greatly reduce tie rod and angle iron use.
Specifications:
Weight: 3450 lb.
Dimensions: 38 x 136.75 x 46 in
Capacity: T-D-P 18-24 ga. for T-D-P Uses approx. 1-7/8″ of material on T-D-P 50 feet per minute T-D-P Clip (min. length 20″) 22 ga. 2-1/8″ 2 1/8″
Forming Sections: 14
Shaft Diameter: 1.25″
Pass-line: 38.625″
Forming Speed: 50 fpm
