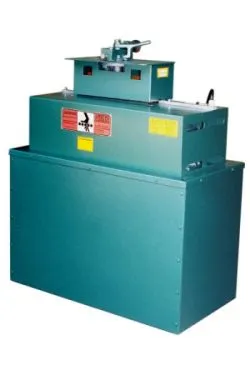

Tinknocker TK 24 Ga. Pitts. w/Stand & Flange Attachment
Have one to sell?
$3,750.00 USD
$3,600.00 USD
ConditionNew
1 available
New
Available from stock AND the Stand Included!!!
On the job site or in the shop, this portable little rollformer is a work horse for 24 gauge and lighter material. It is available with power flanging attachment and is perfect for field use. With the included, all steel stand, it will also fit right in with your other shop equipment.
Specifications:
Weight: 305 lbs
Dimensions: 41 x 25 x 30 in
Capacity: 24 Gauge Mild Steel
Motor: 1/2 HP, 1700 RPM, 115 Volt, Single Phase, 60 Hz – Standard (230/1/50 available)
Depth of Pocket: Approx. 5/16″ (7.9mm) with hammer edge of 3/8″ (9.53mm)
Speed: Approx. 35 FPM
Flange Height: 3/16″ (4.76mm)
Dimensions Roll Former: 30″ x 14″ x 20″ (762mm x 356mm x 508mm)
Dimensions Stand: 35″ x 14″ x 24″ add 6″ around for shipping
Without Flanger Only $3150
With Flanger Only $3750 CALL US WE WILL WORK WITH YOU ON THIS PRICE!!!
Capacity:
24 Gauge Mild Steel
Motor:
1/2 HP, 1700 RPM, 115 Volt, Single Phase,
60 Hz – Standard (230/1/50 available)
Depth of Pocket:
Approx. 5/16″ (7.9mm) with hammer
edge of 3/8″ (9.53mm)
Speed:
Approx. 35 FPM
Flange Height:
3/16″ (4.76mm)
Dimensions Roll Former:
30″ x 14″ x 20″ (762mm x 356mm x 508mm)
Dimensions Stand:
35″ x 14″ x 24″ (889mm x 483mm x 610mm)
add 6″ around for shipping
Shipping Dimensions:
41″ x 25″ x 30″ (1041mm x 65mm x 762mm)
Weight:
Rollformer: 305 lbs
