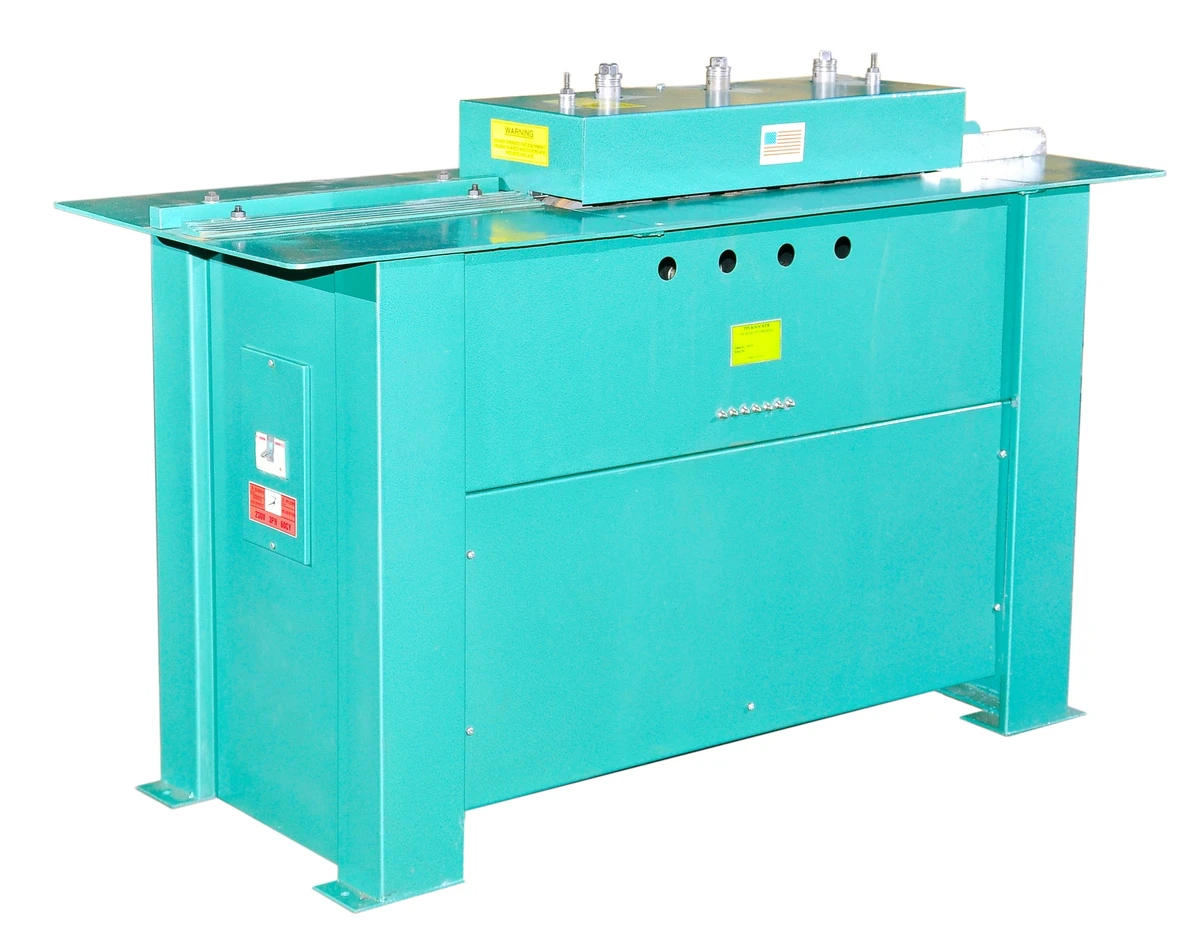

16-gauge Pittsburgh Rollformer
Have one to sell?
ConditionNew
1 available
New

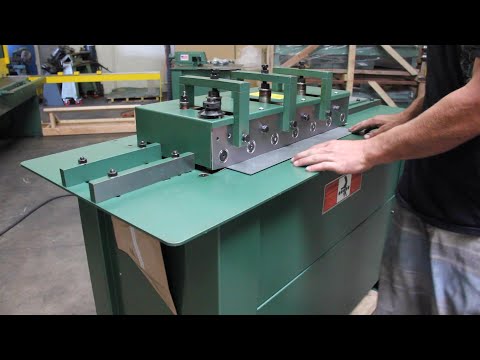

IT COMES LOADED!!! The 16 gauge Pittsburgh Lock machine has 7 forming stations with 2 forming positions. One position forms the Pittsburgh Lock, while the outboard position has the ability of forming a number of other profiles, to include: Acme, Drive Cleat or 4 in 1 rolls (3/16” Right Angle Flange, 7/16” Right Angle Flange, Standing Seam and T-Connection. You don’t pay extra for the choice of opposing rolls, either. You get your choice of rolls opposite the Pittsburgh rolls.
We offer FREE freight on this stock machine, call us for your very best price always! 800-753-0393
Capacity: 16-20 Ga. uses approx. 1-3/8” of material
Motor: 3HP, 230/3/60, 1PH Optional
Depth of Pocket/Size: ½” width of hammer-over edge adjustable up to 3/8
Speed: 40-45 ft per minute
CHOOSE FROM:
ROLLS CAPACITY
APPROXIMATE MATERIAL
USED SIZE
Acme (“Double Seam”) Rolls (Type "L"): 16-22 gauge 1-1/4" 7/16" seam
Drive Cleat Rolls: 20-26 Gauge 2-1/8" 1-1/8" width
Combination 4-in-1 Rolls and
4-Step Gauge Straight Right-AngledFlange Rolls:
16-24 Gauge up to 7/16" up to 7/16" high
Right-Angled Flange: 22-26 Gauge 1-1/8" 5/8" seam
Standing Seam: 22-26 Gauge 1-1/8" 5/8" seam
T-Connection: 22-26 Gauge 1-3/4" 5/8" seam
