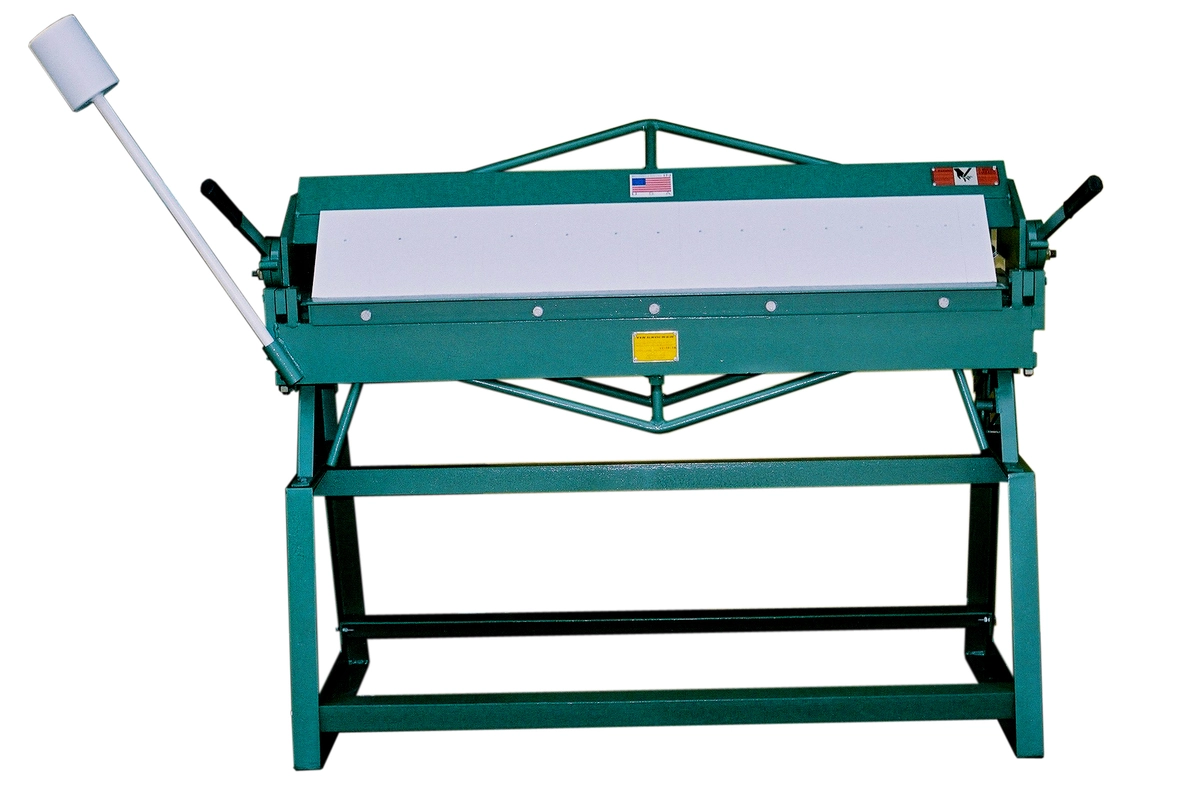

This durable and dependable TK 1648 Box & Pan 4′ x 16-gauge box and pan brake gives you all the features you would expect from our quality machines. It’s made of all steel welded construction with adjustable truss bars and bronze bushings. This brake is built to last. The U4816 comes with removable apron angle and apron insert, permitting .25″ (6.35mm) reverse bends in lighter materials. The nose bar is removable as well and the brakes are equipped with a precise stop rod for repeat bends. 800-753-0393 for quick price delivered to your shop.
Capacity: 16 Gauge (1.5mm)
Bend Length: 48″ (122cm)
Max Beam Lift: 1.25″ (31.75mm)
Max Box Depth: 4″ (101mm)
Min. Reverse Bend: .25 (6.35mm)
Min. Flange: 1″ (25.4mm)
Finger Width: 2,3,4″
Dimensions: 64″Lx28″Wx32″H
Weight: 493 lb.
