Tinknocker 1648 48″ x 16 gauge Box Pan Handbrake
Have one to sell?
ConditionNew
1 available
$2,250.00 USD
$2,245.00 USD
New

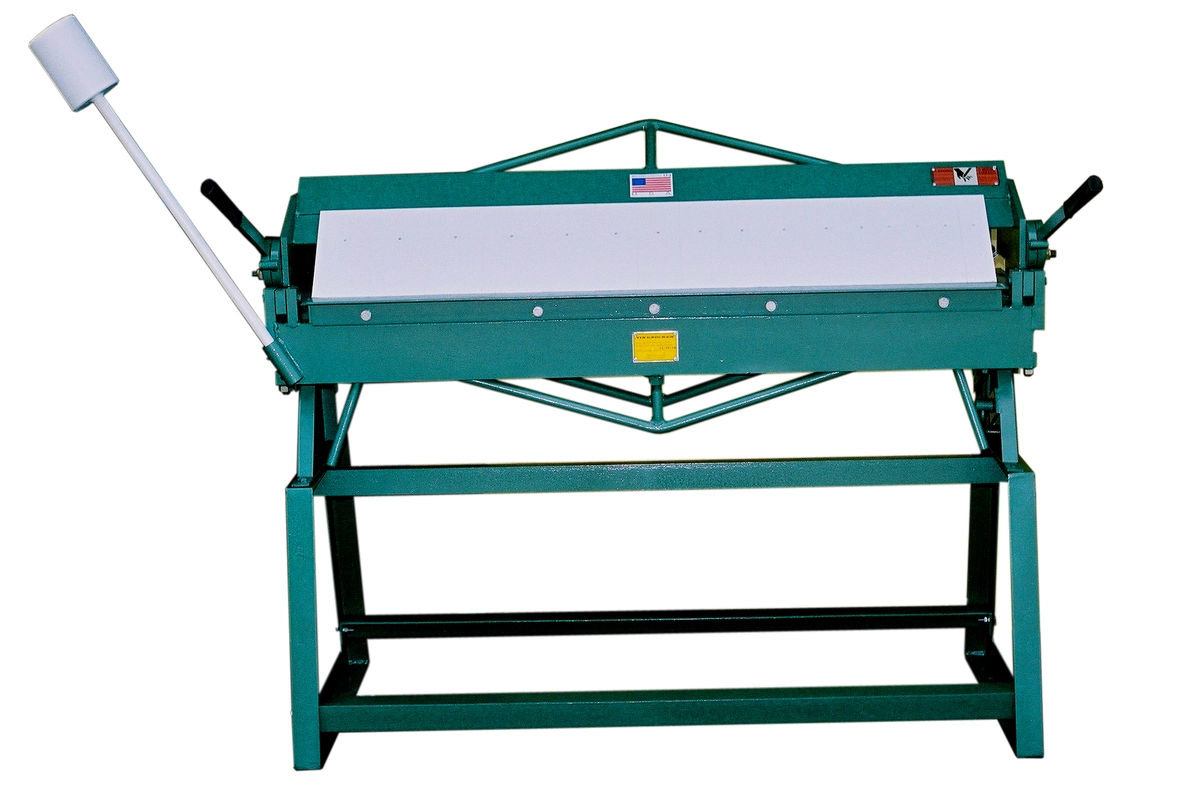

TK 2248 Box & Pan This 1648 box and pan brake gives you all the features you would expect from our quality machines. It’s made of all steel welded construction, with adjustable truss bars and bronze bushings, these brakes are built to last. The brakes come with removable apron angle and apron insert, permitting .25″ (6.35mm) reverse bends in lighter materials. The nose bar is removable as well, and the brakes are equipped with a precise stop rod for repeat bends. 800-753-0393 for BEST LOWEST PRICE
Capacity: 22 Gauge (.75mm)
Bend Length: 48” (122cm)
Max Beam Lift: 7/8” (2 mm)
Max box Depth: 3” (76mm)
Min. Reverse Bend: 5/16 (7.9mm)
Min. Flange: 3/8” (9.5mm)
Dimensions: Approx. 64”L x 28” W x 32”H)
Weight: Approx. 356 lb.
TK 2248 Box & Pan This 1648 box and pan brake gives you all the features you would expect from our quality machines. It’s made of all steel welded construction, with adjustable truss bars and bronze bushings, these brakes are built to last. The brakes come with removable apron angle and apron insert, permitting .25″ (6.35mm) reverse bends in lighter materials. The nose bar is removable as well, and the brakes are equipped with a precise stop rod for repeat bends. 800-753-0393 for BEST LOWEST PRICE
Capacity: 22 Gauge (.75mm)
Bend Length: 48” (122cm)
Max Beam Lift: 7/8” (2 mm)
Max box Depth: 3” (76mm)
Min. Reverse Bend: 5/16 (7.9mm)
Min. Flange: 3/8” (9.5mm)
Dimensions: Approx. 64”L x 28” W x 32”H)
Weight: Approx. 356 lb.
