CIDAN COMBI BEAM 10′ or 12′ CNC Folding Brakes

Description

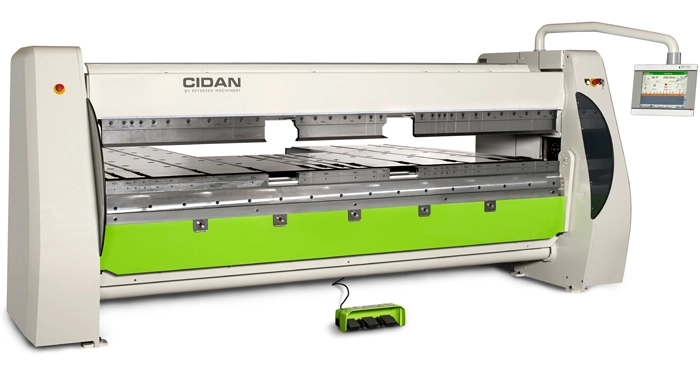

CIDAN folding machine K25 is a fast and easy to use machine, made in a sturdy all-welded steel construction with cast iron side frames for stability. K25 is built for continuous running under the most demanding conditions. This machine covers a wide range of different usage areas and is for example appropriate for the manufacturing industry, repair workshops, sheet-metal shops and sign manufacturers. Both the folding beam and the clamping beam have twin drives.

As a standard feature the machine is supplied with a CNC-control and as options various motorized back gauges. K25 can also be equipped with our unique Combi clamping beam. The Combi clamping beam with automatic locking makes it possible to change tools in less than 10 seconds. Tool changes are programmed directly in the control, and the tool change is made automatically.
An eccentric drive that minimizes wear and gives the best possible opening and closing speeds drives the clamping beam. This also gives the best possible clamping pressure of 13 tons (14US).
The clamping beam opens as the folding beam returns so they are positioned for the next step simultaneously to save operative time.
STANDARD FEATURES

Control system EasyLink, with touch screen for input and storage of folding operations
Clamping beam with straight rail 30°
Lower beam rail
Double sided folding beam rail 7/10 mm (.275″/.394″), with quick change tooling (bayonet style)
Folding beam rail 20 mm (1″), with quick change tooling (bayonet style)
Adjustable crowning of folding beam rail
K25-40, ProLink S with touch screen and graphic programming and Variable folding beam speed (frequency control and 2.2 kW motor) as standard
Foot pedal

OPTIONS

Control System ProLink, with touch screen and graphic programming. Variable folding beam speed (frequency control 2.2 kW motor, +12% speed)
Off line program for ProLink
Motorized back gauge SBG or LBG
Ball transfers in back gauge table (standard on SBG and option on LBG)
Squaring arm
Height adjustable back gauge (0-40 mm/1.58″), requires Multifold
Combi clamping beam with 30° straight rail and a 103 mm (4”) high box tooling with radius 1 mm
Multifold tooling execution with divided lower beam (height 42 mm/1.65”) and divided folding beam rails (10 mm and 20 mm). Requires Combi
K25-40 Multifold has divided folding beam rails 15 mm and 30 mm (10 mm as option)
Straight rail and box tooling with 0.75 mm radius kit (hardened)
Folding beam rail 25 mm (0.934″) or 30 mm (1.4″), with quick change
Round straight rail (R=2.5/5/10 mm)
Hardened rails and tools (undivided HRC 45 – divided HRC 55)
Automatic lubrication
Moveable foot pedal on rail
Moveable tool cart for divided tools
Extra foot pedal with key switch
