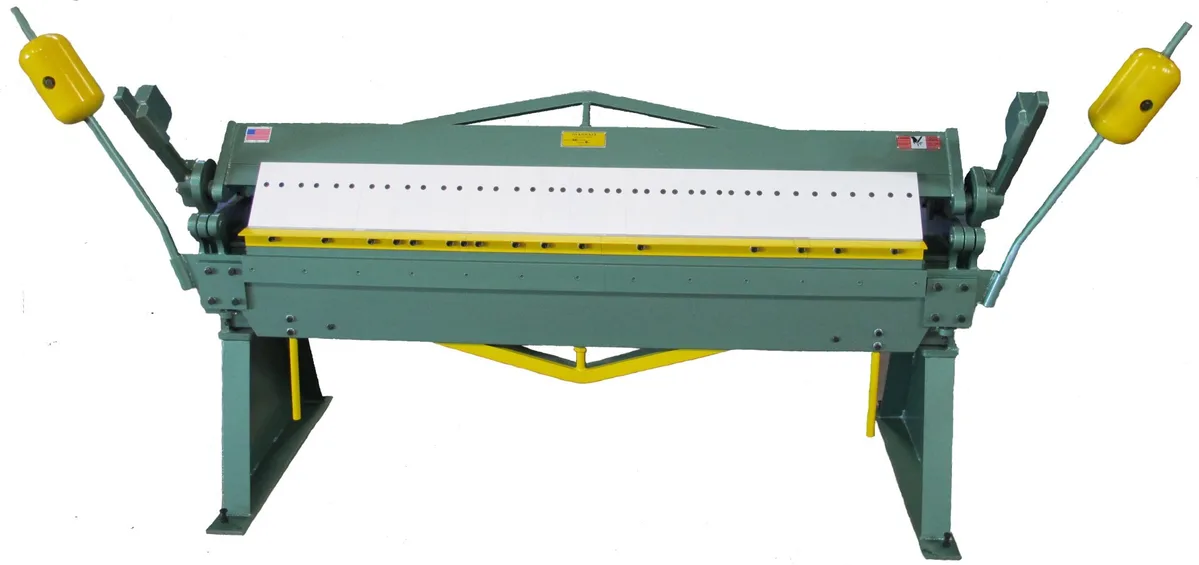

Tinknocker TK 616 Universal Handbrake
Have one to sell?
ConditionNew
1 available
$8,250.00 USD
$8,100.00 USD
New
The new 616 Universal brake is NEW on the market 6′ x 16-gauge brake is both a standard Box & Pan, plus it can bend up your TDF, TDC or TDX ductwork with the segmented tooling found on the bottom bending leaf. Super nice machine and made to take a rigors of a heavy volume shop. Call us or email us using the form below to get additional information or more photos send to you via email.
An incredibly universal hand brake. Featuring box & pan fingers up top and segmented, relocatable bend apron tooling below. Perfect for complex parts to include flange down bends, transverse duct forming & much more. With strategically positioned counter weights this brake makes for easy and smooth manual bending.
BEST PRICE 800-753-0393
tin-knocker-1016-hand-brake
Capacity with lower tooling flanges: 72” x 16 gauge (1.6mm)
Capacity without lower tooling flanges, 72” x 20 gauge (1.0mm)
Lift of beam: 1.5″” (38.1mm)
Front to back ram adjustment: 1/2″ (13mm)
A minimum reverse bend of 5/8″ (16mm)
Min flange width: 1″ (25mm)
Finger widths: 1″, 3″, and 4″ (50.8, 76.2, and 101.6mm)
Lower segment tooling widths of 1″, 1.5″, 4″, 6″, 8″, 12″, and 20″ (25, 38, 102, 203, 305, 508mm)
Bending beam tooling (segmented) lengths of 1″, 1.5″, 4″, 6″, 8″, 12″, and 20″ (25, 38, 102, 203, 305, 508mm)
Maximum transverse bend in center of machine: 2″ (50.8mm)
Maximum transverse bend at end of machine: 3″ (76.2)
Footprint with counter weights: 95x38x54in (2413x965x1346x1372mm)
A shipping weight of 1850 lbs. (839kg) – HERE’S THE BEEF!
