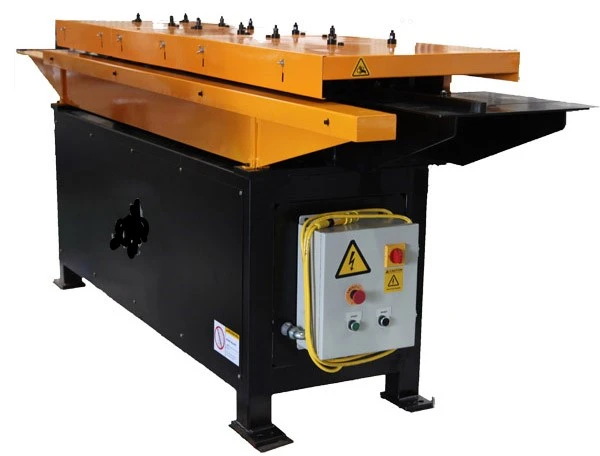

JAG Machinery TDC Rollformer allow you to roll the TDC flange on ductwork and pocket the savings.
The TDC Rollformer has 12 forming stations and produces TDC flanges at speeds of up to 60 feet per minute (18.3m/min) !
The quality construction is easy to see with an industrial motor and gearbox; high precision bearings; heavy-duty three zone chassis; plate head construction; hardened and ground roll shafts all protected with top-quality primer and paint finish.
Optional rolls are available for TDC clip production (22 gauge). Adds $3,500 to price. 800-753-0393 for BEST & LOWEST PRICE
Capacity: 18 – 24 gauge (0.70 – 1.31 mm)
Depth of Pocket: 1-7/8” (47.6 mm) / 2-1/8” (54.0 mm) for Clip
Speed: 50 fpm (15.2 m/min)
Motor: 10 HP (7 kw) – 230 volts, 60 cycle, 3 phase, AC, 1800 RPM
Dimensions: 117”L x 33W” x 46”H (2950 x 830 x 1150 mm)
Weight: 2,090 lbs.
