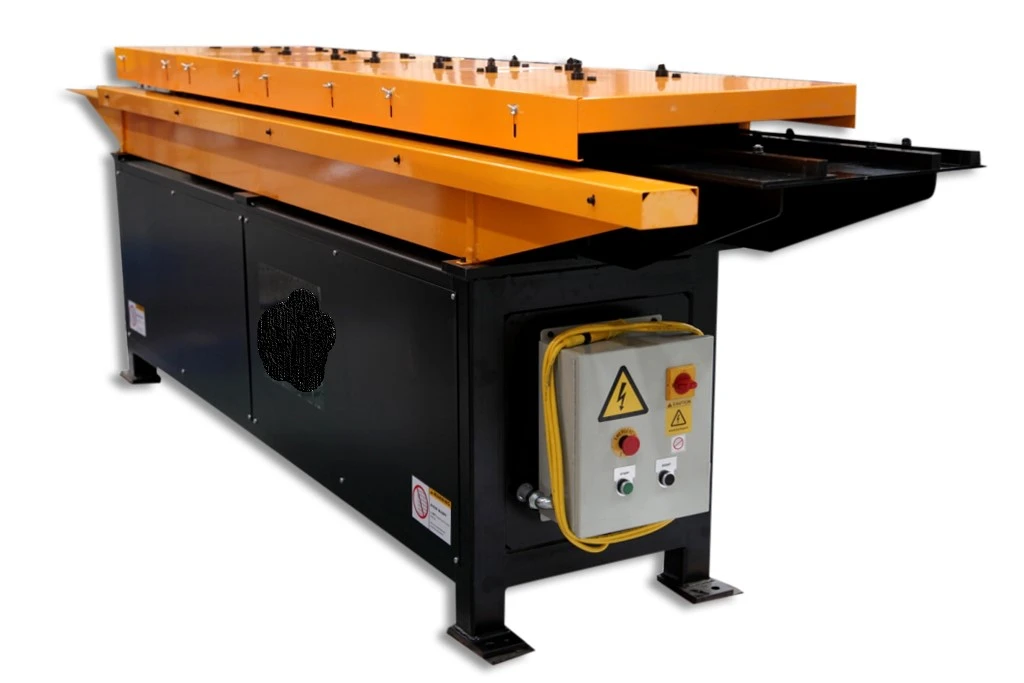

JAG MACHINERY 14-Station TDF Flange Rollformer
Have one to sell?
ConditionUsed
1 available
Save time and money forming TDF/TDX flanges the easy way.
The TDF Rollformer unitizes steel construction, high yield and tensile strength shafts, and “off the shelf” ball bearings.
Other key features and benefits include:
Heavy-duty Mod4 (6 pitch) gears.
Extended roll shafts for mounting auxiliary rolls (one side outboard only).
Optional tooling sets available for outboard mounting.
All steel forming head, hardened steel infeed guide, and hardened steel forming rolls mounted on turned and ground spindles.
No adjustments necessary when going from 26 gauge to 18 gauge material.
Includes Snap Flange Feature.
Comes standard with short parts feeder for 6 inch (152 mm) minimum lengths (requires no manual adjustment or removal of machine guards when running short parts).
Optional rolls available for TDF clip production (20 ga). Adds $4,750 to price. 800-753-0393 BEST PRICE
Capacity: 16 – 26 gauge (0.55 – 1.31 mm)
Depth of Pocket: 1-11/16” (42.9 mm)
Speed: 50 fpm (15.2 m/min)
Motor: 7-1/2 HP (5.5 kw) – 230 volts, 60 cycle, 3 phase, AC, 1800 RPM
Dimensions: 141”L x 33W” x 46”H (3570 x 830 x 1150 mm)
Weight: 2,420 lbs. (1,100 kg)
