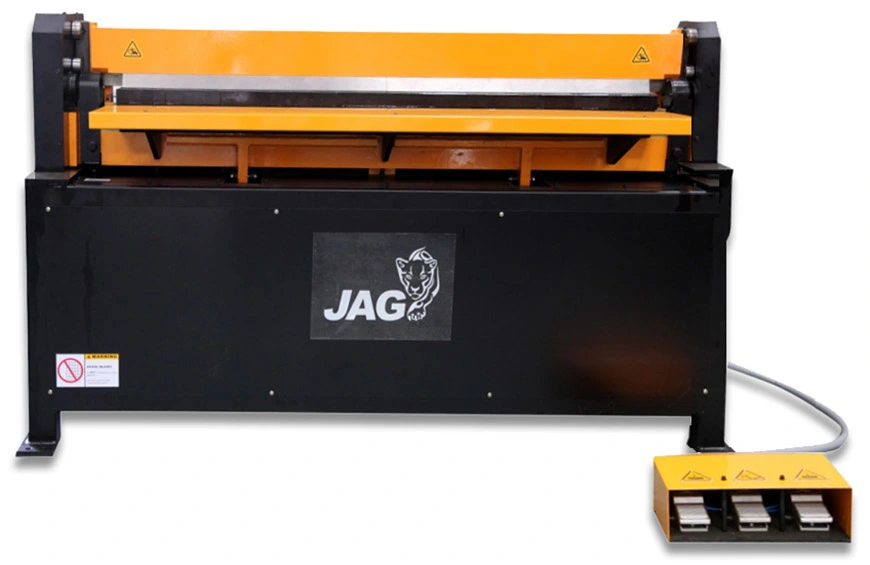

JAG MACHINERY 5′ x 16-gauge TDC/TDF/TDX Pneumatic Wrap Brake
Have one to sell?
ConditionUsed
1 available
A free standing general fabrication 60″ Full Wrap Brake. THIS BRAKE IS IN STOCK!
The AIR FOLDER is ideal for forming and bending panels and other flanged metal parts.
Pneumatic operated, foot pedal control.
Rugged welded steel construction.
Maintenance-free bearing and guides.
Pneumatic drive folding beam.
Safety interlock controls.
Dial-adjustable bend angle 0-90°.
Automatic TDC/F notch locator.
Pneumatic drive clamping beam with automatic return.
800-753-0393 for BEST PRICE
Capacity: 14 – 16 gauge (1.6 – 2.0 mm)
Depth of Pocket: 1/2” (12.7 mm) – uses 1-3/8” (34.9 mm) of material
Maximum Bend Length: 60″ (1525 mm)
Maximum Galvanized Steel Thickness: 1/16” (1.6 mm)
Minimum Wrap Duct Size: 8.7” x 8.7” (220 x 220 mm)
Clean, Dry Air Supply: 11 CFM at 100 PSI (not to exceed 120 PSI)
Dimensions: 88”L x 46W” x 35”H (2235 x 1170 x 890 mm)
Weight: 2,046 lbs. (930 kg)
