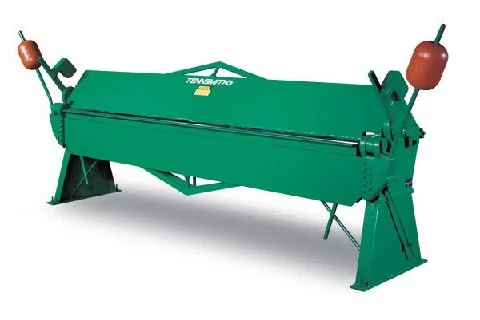

Tennsmith Model HB121-18 10′ x 18 gauge Hand Brake
Have one to sell?
ConditionNew
1 available
New
Tennsmith heavy-duty hand brakes are designed and built for long service and accurate bending. Welded steel plate construction and heavy truss rods and braces provide strength and durability. With much more substantial steel side plates than other domestically made units, these brakes have the rigidity required for upper leaf adjustment without the use of wrenches. Equipped with thrust bearings, the upper leaf adjustment screws permit quick, accurate alignment for different material thicknesses or radii.
OTHER ADJUSTMENT FEATURES INCLUDE:
* Leveling screws and lock nuts on the pedestals
* Jack screws and tensioner bolts on the apron
* Truss rods on the apron, base and upper beam
* Fully adjustable counter balances, to facilitate the
bending process
* Replaceable nose bar and apron inserts
* Removable apron angle and insert permit 1/4-inch reverse
bends in lighter material.
* Bored in line to ensure perfect alignment, the pivot
points are fitted with oil impregnated bearings. The hinge
pins are high-tensil, alloy steel.
* Ductile steel clamp handles, heavy yokes, grease fittings
and an apron stop rod complement the many other fine
features of these heavy-duty breaks.
100% MADE IN THE U.S.A.!!
INCLUDES 3-YEAR FACTORY WARRANTY!!
With much more substantial steel side plates than other domestically made units, these brakes have the rigidity required for upper beam adjustment without the use of wrenches.
BEST PRICE 800-753-0393 MACHINE IS IN STOCK
Capacity, Mild Steel: 18 Gauge
Capacity, Stainless: 22 Gauge
Bending Length: 121"
Max. Lift of Beam: 1-7/8"
Front to Rear Beam Adjustment: 1/2"
Min. Reverse Bend: 1/4"
Min. Flange in Capacity Material: 1"
Dimensions, Counterweight in Place: 159"L X 52"W X 60"H
Approx. Weight: 2300 lbs.
Thrust bearings, the upper leaf adjustment screws permit quick, accurate alignment for different material thickness or radii.
Removable apron angle and insert permit 1/4-inch reverse bends in lighter material.
Bored in line to ensure perfect alignment, the pivot points are fitted with oil impregnated bearings. The hinge pins are high-tensile, alloy steel.
Ductile steel clamp handles, heavy yokes, grease fittings and an apron stop rod complement the many other fine features of these heavy-duty brakes.
