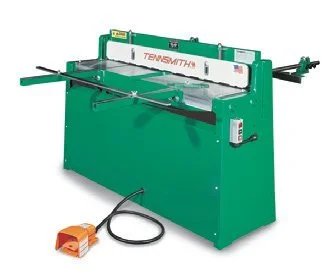

Tennsmith Model H52 52 inch X 16-gauge Hydraulic Powered Squaring Shear

Description

TENNSMITH’s power shears combine all of the features of our foot shears with the advantage and convenience of air or hydraulic operation.

TENNSMITH power shears are a productive addition to any shop. The air shears utilize heavy-duty, tie rod-type pneumatic cylinders, which provide up to 40 strokes per minute in capacity materials.

A foot-operated air valve control, pressure regulator, air gauge, oiler/condenser cups and neoprene, padded holddown feet are standard features. We recommend a maximum air supply of 75 psi for operating these shears at rated capacity. Where air supply pressures exceed 75 psi, an in-line regulator is helpful to provide pressure control.

The model 52H cycles at 45 strokes a minute, thanks to its first class hydraulic system. The hydraulic unit is of a low maintenance design featuring a solenoid actuated valve, 3-hp electric motor, self-contained pump in tank with pressure gauge, check valve and industrial quality cylinders. The motor is protected by a magnetic starter.

Other electrical safety features include a low voltage on/off switch; low voltage, shrouded, electric foot switch; step-down transformer with low voltage circuit fuse; fully enclosed electrical box; and insulated reinforced conduit for all wiring. Models 36A and 52A are ideal ways to enhance shearing productivity with minimal investment.

All shears are standard, equipped with high-carbon/ high-chromium (HCHC) blades.

Standard equipment includes a back gauge, front extension arms with stop, bevel gauge and graduated side scales.

Additional options: Squaring arm.
Warranty: 3 year manufacturer’s warranty

TENNSMITH HYDRAULIC shears combine all the feature of our
foot shear with the advantage and convenience of hydraulic
operation. TENNSMITH power shears are a productive addition
to any shop.

The Model 52H cycles at 45 strokes a minute, thanks to its
first class hydraulic system. The unit features a solenoid
actuated valve, 3-hp electric motor, 10-gallon tank with
sight gauge and thermometer, pressure gauge, check valve and
industrial quality cylinders. The motor is protected by a
magnetic starter. Other electrical safety features include a
low voltage on/off switch; low voltage, shrouded, electric
foot switch; step down transformer with low voltage circuit
fuse; fully enclosed electrical box; and insulated
reinforced conduit for all wiring.

All shears are standard, equipped with highcarbon/high-
chromium (HCHC) blades.
STANDARD EQUIPMENT:
* Rear Operated Manual Back Gauge
* Front Extension Arms with Stop, Bevel Gauge
* Graduated Side Gauges
* Foot Control
* Neoprene Padded Holddown Feet and Stroke Counter

OPTION:
Wire machine to 220 volt, single phase, 60 HZ
One shot lube (Factory Install)
4' squaring arm with scale (Factory Install)
