TENNSMITH pneumatic shears combine all the feature of our
foot shear with the advantage and convenience of air
operation. TENNSMITH power shears are a productive addition
to any shop.

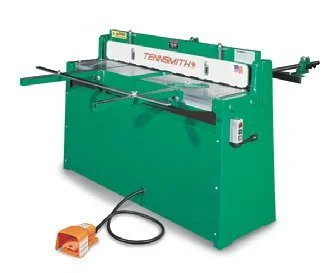

Models 36A and 52A are ideal ways to enhance shearing
productivity with minimal investment. The air shears utilize
heavy-duty, tie rod-type pneumatic cylinders, which provide
up to 40 strokes per minute in capacity materials. A foot-
operated air valve control, pressure regulator, air gauge,
oiler/condenser cups and neoprene, padded holddown feet are
standard features. We recommend a maximum air supply of 75
psi for operating these shears at rated capacity. Where air
supply pressures exceed 75 psi, an in-line regulator is
helpful to provide pressure control. Generally, a 10-hp
stand-alone compressor would be the minimum recommended size
to operate these shears.
Other electrical safety features include a low voltage
on/off switch; low voltage, shrouded, electrical foot
switch; step-down transformer with low voltage circuit fuse;
fully enclosed electrical box; and insulated reinforced
conduit for all wiring. Models 36A and 52A are ideal ways to
enhance shearing productivity with minimal investment.
All shears are standard, equipped with highcarbon/high-
chromium (HCHC) blades.
100% MADE IN THE U.S.A. INCLUDES 3-YEAR FACTORY WARRANTY!! BEST PRICE PRODUCT 800-753-0393

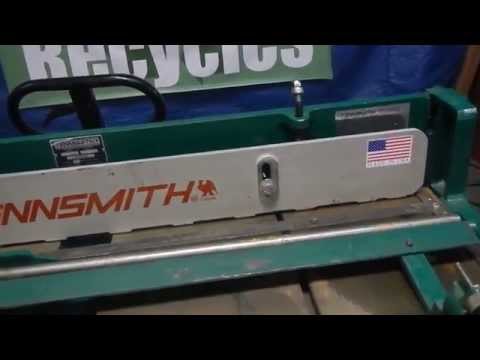

VIDEO SHOWS A USED MACHINE FROM YEARS AGO, WE HAVE NEW IN STOCK
Max. Shearing Capacity, Mild Steel: 16 Gauge
Max. Shearing Capacity, Stainless Steel: 20 Gauge
Max. Cutting Length: 52-1/4"
Back Gauge Range: 30"
Front Gauge Range: 37"
Floor Space, Gauges In Position: 60" X 80"
Dimensions, Less Gauges: 61"L X 25"W X 42"H
Strokes Per Minute, Full Length: 40
Max. Operating Pressure: 75 PSI
Air Consumption Per Stroke: 1.33 CU Foot
Shipping Weight: 1085 lbs.
