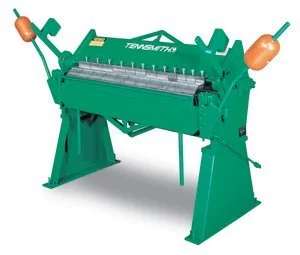

Tennsmith Model HBU48-12 48 inch x 12 gauge Manual Heavy Duty Floor Brake

Description

The Model HBU48-12 can handle 12-gauge and lighter materials. The Model HBU72-16 is rated for 6 feet of 16-gauge material. Each hand brake is ideal for both box and pan and straight bending in hot and cold rolled plate, stainless steel, aluminum and heavy plastic.

Ample clamping and nose bar adjustments allow for the bend radius necessary for your application. Welded steel plate construction and heavy truss rods and braces provide strength and rigidity.

This brake features a removable apron insert for 1/4-inch bends in lighter material. The upper leaf adjustment screws feature thrust bearings to prevent upper beam creep. Ductile steel clamp handles, heavy counterweights and an apron stop rod add to the brake’s ease of operation.

The removable fingers are case hardened for long service. Tennsmith’s box and pan hand brake is a productive addition to any shop doing prototype or design work, fabrication or short run production in heavier materials.
