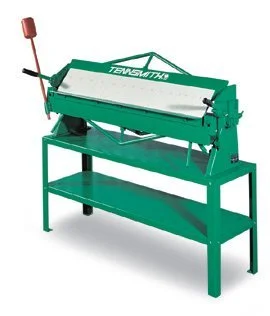

Tennsmith 48 inch x 12 gauge Box & Pan HandBrake
Have one to sell?
ConditionNew
1 available
New
TENNSMITH's new HBT Brake is designed to provide forming
capabilities for complex parts. This machine is truly a
universal hand brake which allows for the removal of both
upper and lower segments of fingers. Complex parts, such as,
HVAC transverse duct forming and down flanged parts, as well
as architectural sheet metal and signage application, can be
formed using this machine.
This brake is built with the same high-quality features and standards
that TENNSMITH brakes are recognized for throughout the industry.
OPTIONS AVAILABLE: RADIUS FINGERS
100% MADE IN THE U.S.A.!! INCLUDES 3-YEAR FACTORY WARRANTY!! BEST PRICE PRODUCT 800-753-0393
Capacity, Mild Steel: 12 Gauge
Capacity, with bending support angle removed, Mild Steel:
16 Gauge
Bending Length: 48"
Maximum Lift of Beam: 1-1/2"
Front to Rear Beam Adjustment: 1/2"
Maximum Depth of Box: 4"
Minimum Reverse Bend: 5/8"
Min. Flange in Capacity Material: 1"
Top Segmented Tooling Widths: 2, 3, 4 in.
Lower segment tooling widths: 1", 1-1/2", 4", 6", 8", 12", 20"
Bending Beam Tooling Segments: 1", 1-1/2", 6", 8", 12", 20"
Maximum Transverse Bend (Through Tooling Centers): 2"
Maximum Transverse Bend (At Either End of Machine): 3"
Dimensions, Counterweights in Place: 72"L X 36"W X 53"H
Shipping Weight: 1750 lbs.
