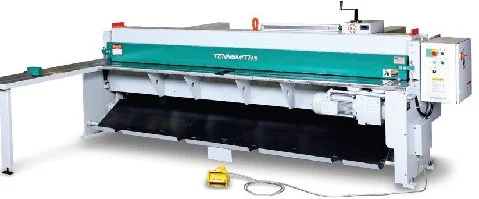

* Unique 2X Front OP Back Gauge SYstem .. 0-24" in 2 turns!
* Heavy Steel Plate construction featuring solid steel
adjustable bed
* Four-Edge, High Carbon High Chrome Blades
* Independent, Self-Leveling Holddown Feet with Neoprene
inserts
* Single, continuous and jog stroke cycles
* Motor reverse switch
* Emergency stop switch
* Finger Guard
* Precision machines table with hand well
* Dual Inch/Metric Inlaid Bed Scales and Non-Metallic Gibs
Maximum Shearing Capacity, Mild Steel: 14 Gauge
Maximum Shearing Capacity, Stainless Steel: 18 Gauge
Max. Cutting Length: 145"
Back Gauge Range: 30"
Strokes Per Minute, Full Length: 35
No. Of Holddown Feet: 16
Overall Dimensions: 164"L X 72"W X 56"H
Shipping Weight: 7530 lbs.
Motor: 7.5 HP, 230/460V, 3-Phase, 60HZ
OPTIONAL LM1012 SERIES ACCESSORIES:
Squaring Arm, 4' with Inlaid Scale
Squaring Arm, 10' with Inlaid Scale
Additional FLip-Up Stops for Squaring Arm (Each)
Front Support Arms, Pair
T-Slotted Table with (2) Front Supp Arms w/Inlaid
Inch/Metric Scale
Additional Flip-Up Stops for T-Slotted SUpp Arms & Table (Each)
Protractor attachment
Digital Read-Out
Power operated "Go-To" Control Backgauge with 30" Travel
Work Shadown Light LM Series
Stroke Counter for LM Series (Electro-Mechanical)
Extra set of High carbon, High Chrome, 4-Edge Blades
Single Phase Electrics
PERFORMANCE PACKAGE : LM-1214-R: (INCLUDED)
(Shear with 2X Manual Backgauge and Rear-Drop Sheet SUpport)
*Includes 4' Squaring Arm, (2) Front Support Arms, Electro-
Mechanical Stork Counter, and Rear-Drop Air-Op Sheet Support System
LM-1214-F:(OPTIONAL FOR ADDED COST)
(Shear with 2X Manual Backgauge and Front-Return
Sheet Support,
*Includes 4' Squaring Arm, (2) Front support Arms, Electro- Mechanical
Stroke Counter, and Front-Return Sheet Support System
A moveable Material Cart is available for both Front and Rear Return machines.
