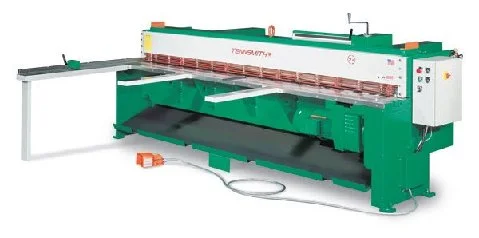

LM Series mechanical shears utilize a simple low maintenance design, coupled with an array of standard features for an attractive combination of high value and solid performance.
The LM1010 is equipped with a standard “Go-To” 30-inch back gauge system. The ball screw-driven back gauge provides quick, accurate cuts. The operator simply inputs a dimension, and then presses enter, and the gauge automatically positions to that number. Please call for more details.
The LM1010-2x incorporates the unique 2x back gauge system. This allows the operator to move the backstop from 0 to 30 inches in approximately 2 seconds with only two rotations of the handle. An optional digital readout is available for this system.
The LM Series shears are standard with four-edge, high carbon, high chrome blades, independent, self-leveling hold down feet with neoprene inserts, single, continuous and jog stroke cycles, motor reverse switch, precision-machined table with hand well, dual inch/metric inlaid bed scales and non-metallic gibs.
The rated capacity of the LM1010 is 10-gauge mild steel, 14-gauge stainless up to 121 inches in cutting length. To enhance productivity, optional equipment available for the machine includes: five or ten-foot squaring arm, front support arms, light beam and protractor attachments. Please contact for a complete listing of optional equipment. The LM1010 also has available an air operated sheet support system. This system is available as Rear Return Only: System R drops the support material to the rear of the machine. Please call for details.
The LM series shears are available in a reduced price “Performance Package” configuration. The Performance Package includes: a five foot squaring arm, a pair of front support arms, and air operated sheet support system. Performance “R” system is for rear return. WE ALSO SELL THE LM1014 SHEARS ON A MONTHLY BASIS, CALL US IF LOOKING FOR A GREAT ROOFING OR HVAC SHEAR! BEST PRICE PRODUCT 800-753-0393
Maximum Shearing Capacity, Mild Steel 10 gauge/3,5mm
Mild Steel Rated Materials at 80,000 Tensile / 44,000 Yield
Maximum Shearing Capacity, Stainless Steel 14 gauge/2,0mm
Stainless Shear Rated Materials at 90,000 Tensile / 55,000 Yield
Maximum Cutting Length 121 in/3073mm
Back gauge Range 30 in/762mm
Strokes per Minute 35
Number of Hold downs 16
Motor-230/460v, 3-phase, 60Hz 12.5 hp
Overall Dimensions, Less Gauges, LxWxH 145 x 39 x 60 in
Floor Space, Gauges in Position 145 x 78 x 60 in
Shipping Weight 9,400 lbs
LM1010-2x $PRICE ON REQUEST
LM1010-Go-To $POR
LM1010-2xR Performance “R” $POR
LM1010-Go-ToR Performance “R” $POR
