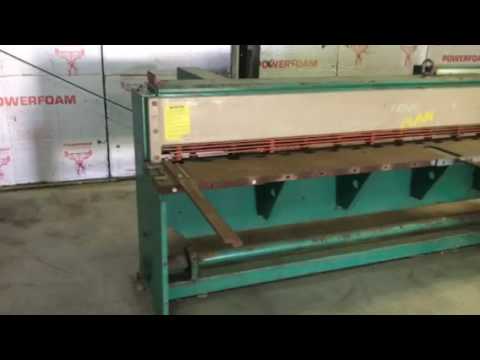

TENNSMITH LM1014 10′ x 14 gauge Mechanical Power Squaring Shear
Have one to sell?
ConditionUsed
1 available

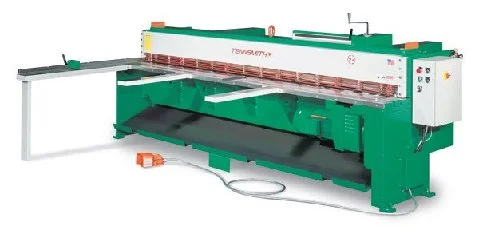

LMS Series mechanical shears utilize a simple low maintenance design, coupled with an array of standard features for an attractive combination of high value and solid performance.
The LMS126-14 incorporates the unique 2x back gauge system. This allows the operator to move the backstop from 0 to 30 inches in approximately 2 seconds with only two rotations of the handle. The LMS 2x back-gauge comes standard with a digital readout. The 2x digital readout increments are 0.001”
The LMS Series shears are standard with four-edge, high carbon, high chrome top and bottom blades , independent, self-leveling hold down bar with neoprene insert, single, continuous and jog stroke cycles, motor reverse switch, precision-machined table with hand well, dual inch/metric inlaid bed scales and non-metallic gibs.
The LMS126-14 and the LM1014 mechanical shears will handle 14-gauge mild steel, 18-gauge stainless up to 127 inches in cutting length. To enhance productivity, optional equipment available for the machine includes: ten-foot squaring arm, t-slotted front support arms, t-slotted table with inlaid inch/metric scales, light beam and protractor attachments. Please contact Tennsmith for a complete listing of optional equipment.
The Tennsmith LMS126-14 comes standard with an air operated sheet support system. This system is available in two styles: System-R drops the support material to the rear of the machine; System-F returns the supported material to the front of the machine via a front return chute.
The Performance Package includes: 5’ squaring arm with inlaid scale and stop, a pair of Front Support Arms, and Air Operated Sheet Support System.
Benefits of the LMS126-14 power shear are:
Low power consumption
Quiet operation
Superior quality of cut
Fast manual back gauge
Four Edge Top and Bottom Blades
10’6 of cutting width
Front return sheet support system
Manufacturing, service, and parts support for the LMS126 shear are based in McMinnville, TN & Pittsburgh, PA.
THIS IS A BEST PRICE PRODUCT CALL 800-753-0393 NEW & USED AVAILALE
Maximum Shearing Capacity, Mild Steel 14 gauge/2,0mm
Mild Steel Rated Materials at 80,000 Tensile / 44,000 Yield
Maximum Shearing Capacity, Stainless Steel 18 gauge/1,25mm
Stainless Shear Rated Materials at 90,000 Tensile / 55,000 Yield
Maximum Cutting Length 127 in/3225mm
Back gauge Range 30 in/762mm
Strokes per Minute 35
Number of Hold downs Solid Bar with Insert
Motor-230/460v, 3-phase, 60Hz 5 hp
Overall Dimensions, Less Gauges, LxWxH 145 x 27 x 55-1/2 in
Floor Space, Gauges in Position 145 x 60 x 55-1/2 in
Shipping Weight 6200 lbs
We try to keep a shear in stock at all times, please call for availability. If we don’t have new in stock we might have a Demo Unit or a Used Shear to discuss.
