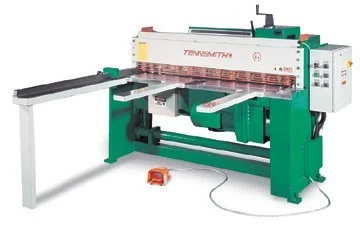

Tennsmith LM410 4′ x 10 gauge Mechanical Power Squaring Shear
Have one to sell?
ConditionNew
1 available
New
The Tennsmith LM Series mechanical shears utilize a simple low maintenance design, coupled with an array of standard features for an attractive combination of high value and solid performance. The LM410 incorporates the unique 2x back gauge system. This allows the operator to move the backstop from 0 to 30 inches in approximately 2 seconds with only two rotations of the handle. An optional digital readout is available for this system.
The LM Series shears are standard with four-edge, high carbon, high chrome top and bottom blades , independent, self-leveling hold down feet with neoprene inserts, single, continuous and jog stroke cycles, motor reverse switch, precision-machined table with hand well, dual inch/metric inlaid bed scales and non-metallic gibs.
The LM410 will handle 10-gauge mild steel, 16-gauge stainless up to 52-1/4 inches in cutting length. To enhance productivity, optional equipment available for the machine includes: five or ten-foot squaring arm, front support arms, light beam and protractor attachments. Please contact Tennsmith for a complete listing of optional equipment. The LM610 also has available an air operated sheet support system. This system is available in System-R drops the support material to the rear of the machine only.
The LM series shears are available in a reduced price “Performance Package” configuration. The Performance Package includes: a Five Foot Squaring Arm, a pair of Front Support Arms, and Air Operated Sheet Support System. Performance “R” system is for rear return. BEST PRICE PRODUCT 800-753-0393
Maximum Shearing Capacity, Mild Steel 10 gauge/3,5mm
Mild Steel Rated Materials at 80,000 Tensile / 44,000 Yield
Maximum Shearing Capacity, Stainless Steel 14 gauge/2,0mm
Stainless Shear Rated Materials at 90,000 Tensile / 55,000 Yield
Maximum Cutting Length 52-1/4 in/1334mm
Back gauge Range 24 in/610mm
Strokes per Minute 35
Number of Hold downs 14
Motor-230/460v, 3-phase, 60Hz 7.5 hp
Overall Dimensions, Less Gauges, LxWxH 72 x 27 x 56 in
Floor Space, Gauges in Position 72 x 72 x 56 in
Shipping Weight 3,500 lbs
Price……………………CALL US, FREE FREIGHT POSSIBLE
Machines are standard with 220 Volt or 440 Volt 3 Phase 60 Hz electrics
Machines wired for 220 Volt 1 Phase 60 Hz electrics Add $1,800.00
LM Series Options and Accessories:
Squaring Arm, Five Foot w/ Dual Inlaid Inch/Metric Scale
Additional Flip-up Stops for Squaring Arm (each)
Front Support Arms, Pair
Additional Flip-up Stops for T-Slotted Support Arms and Table (each)
Protractor Attachment
Work Shadow Light LM Series
Stroke Counter for LM Series (Electro-Mechanical)
Digital Readout for 2x Back gauge System
Replacement Blades (Four-Edge Top and Bottom)
Three-Year Factory Warranty on all Tennsmith Products. We WILL NOT be under sold, call us last if you must shop around!
