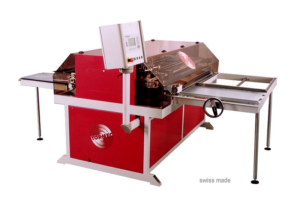

Tormec Segto Curvecutter Elbow Segment Cutting Machine

Description

TORMEC SEGTO – Segment cutting machine
Curvecutter
This machine is specially designed for cutting out segments of highest accuracy from a blank (i.e. bends, flat oval bends and domes). The Curvecutter is a suitable machine for a high production line together with any Spiral Pipe machine, Stitchwelder and Gorelocker.

Characteristics:
Diameter of elbows 125 – 1000 mm ( 5 to 40 inch )
Max angle of elbows:90°
Max. angle of segments: 5 – 46°
Number of segments / bows: 5 (depending of diameter ),
one pass makes 4 cuts at the same time
Additions for seam: 1 – 20 mm ( 0.04 to 0.08 inch )
Additions for muff: 1 to 50 mm ( 0.04 to 1.9 inch )
Material steel: bright, galvanized and stainless
Processable material: bright steel, galvanized and stainless steel
Thickness of material: 0,4 – 1,2 mm (28 ga to 18 ga), depending on material
Maximum width of sheet to be passed through machine : 1500 mm (60 inch )
Maximum length of sheet: 3200 mm ( 125 inch )
Feeding speed: 2 – 8,0 m/min ( 6 to 26 ft/min )
Power: 2,5 kVA
Voltage: 4 x 400 V / 50 or 60 cycles + ground + neutral
