Tormec Elbow-Maker Gorelocker
Have one to sell?
ConditionUsed
1 available
$36,000.00 USD

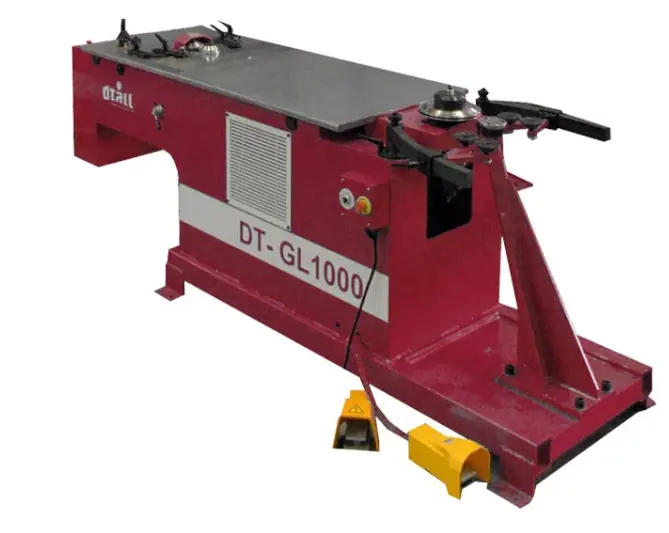

ELBOW-MAKER, machine for bordering and closing elbows with double work station.

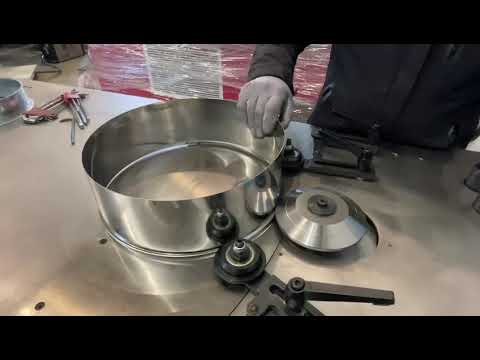

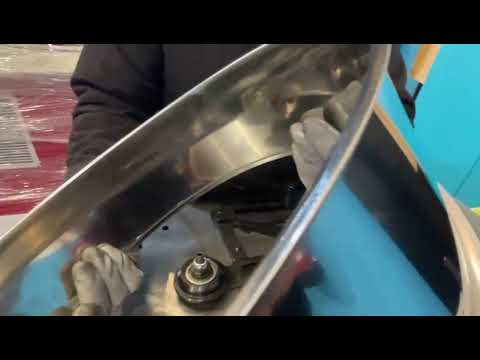

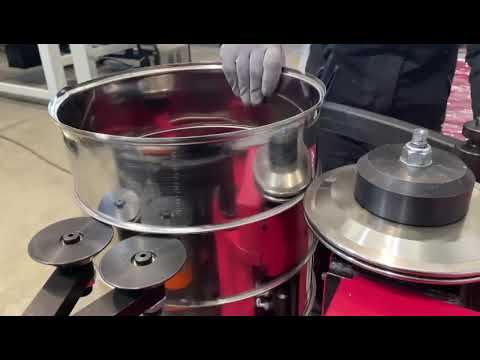

Machine specially designed for folding and doing the flange in tube elbows and reducers (seaming the edge of segments to build elbows).
Technical data
Working diameter range:125 – 1’000 mm. (depending on sheet thickness)
Maximum segment angle: 30º
Quality materials:
0.4-1.2 mm. mild steel or galvanized sheet R = 37 kg / mm2 with quality suitable to be cold-formed.
0.4 – 0.9 mm in stainless steel with quality suitable to be cold-formed.
Other materials such as aluminium or copper can be used, specially preparing the machine, on request.
Fold height: 5 mm. for ø between 125 and 250 mm.
7.5 mm. for ø between 250 and 700 mm.
10 mm. for ø between 700 and 1000 mm.
Driving: Hydraulic.
Electrical supply: 400V / 50Hz / III
Pneumatic: 5 bar. / 0.03 m³ /h
ELBOW-MAKER, machine for bordering and closing elbows with double work station.
Machine specially designed for folding and doing the flange in tube elbows and reducers (seaming the edge of segments to build elbows).
Technical data
Working diameter range:125 – 1’000 mm. (depending on sheet thickness)
Maximum segment angle: 30º
Quality materials:
0.4-1.2 mm. mild steel or galvanized sheet R = 37 kg / mm2 with quality suitable to be cold-formed.
0.4 – 0.9 mm in stainless steel with quality suitable to be cold-formed.
Other materials such as aluminium or copper can be used, specially preparing the machine, on request.
Fold height: 5 mm. for ø between 125 and 250 mm.
7.5 mm. for ø between 250 and 700 mm.
10 mm. for ø between 700 and 1000 mm.
Driving: Hydraulic.
Electrical supply: 400V / 50Hz / III
Pneumatic: 5 bar. / 0.03 m³ /h
Machine specially designed for folding and doing the flange in tube elbows and reducers (seaming of edge of segments to build elbows). Among others, the most notable advantages of mechanical production are the evident saving of time and the constant high quality of the flanging (the double station allows working in folding or closing but not at the same time).
Working diameter range:125 – 1’000 mm. (depending on sheet thickness)
Maximum segment angle: 30ºQuality materials:
0.4-1.2 mm. mild steel or galvanized sheet R = 37 kg / mm2 with quality suitable to be cold-formed.
0.4 – 0.9 mm in stainless steel with quality suitable to be cold-formed.
Other materials such as aluminium or copper can be used, specially preparing the machine, on request.
Fold height:
5 mm. for ø between 125 and 250 mm.
7.5 mm. for ø between 250 and 700 mm.
10 mm. for ø between 700 and 1000 mm.
Driving: Hydraulic.
Electrical supply: 400V / 50Hz / III
Pneumatic: 5 bar. / 0.03 m³ /h
