Compact Design: Single-piece Machine Requiring Minimum Shop Floor Space
Coil Capacity: Built-in Two-In-One Coil Holder & Two Ea. 10,000 Lb. Expanding Coil Mandrels for 19in. to 25in. Coil I.D.’s.
Production Functions: Leveling, Beading, End & Vee Notching, and Folding & Shearing. Produces Duct In the Flat, In “L’s”, “U’s”, or “Fully Folded, 4-Sided” In 4-ft, Or 5-ft. Lengths
In 4-ft, Or 5-ft. Lengths Save Labor & Material: One-Man Operation, “Zero Waste” Job-to-Job. And Serves As Cut-To-Length line To Produce Exact Required Sheet lengths For Fittings To Be Cut on Plasma Table

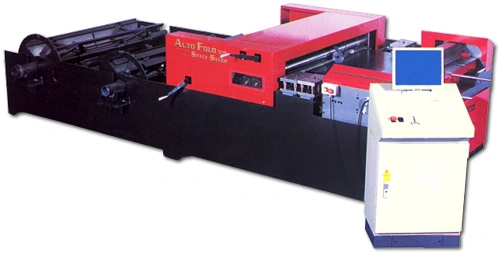

The Space Saver can produce the following:
Flat cut to length blanks with or without beads
Flat cut to length duct with notches (1,2,3 or 4 piece)
“L” Sections with or without notches
“U” Sections with or without notches
Fully Wrapped Duct Sections with or without notches
Produces Male Pittsburgh
2ea 10,000 LB Capacity Coil Mandrels
Adjustable Leveler
2ea Adjustable “V” Notchers forS & D and TDF/C
5′ 16ga Capacity Shear
Material Jam Detector
Base machine is one piece (14′ L x 6’6″ W)
Coil Range 19″ ID or 27″ ID
• Adjustable Beader (Maximum 18ga Capacity)
2ea Adjustable Corner Notchers for S & D and TDF/C
5′ 16ga Capacity Folder
CNC Controller with USB Port and Color LCD Screen
AFF Standard Options
Additional Coils
Automatic Female Side Eject Pittsburgh Rollformer
Down Load from Plasma Cutting Software
Power Coil Drive (CDA)
Gauge Counter
